742 系列 0603 0.063 W 100 Ohm ±5 % 50 V 表面贴装 贴片电阻 阵列
100 欧姆 ±5% 62.5mW 每元件功率 隔离 8 器网络，阵列 ±200ppm/°C 2506，凹陷，长边端子
得捷:
RES ARRAY 8 RES 100 OHM 2506
立创商城:
100Ω ±5%
艾睿:

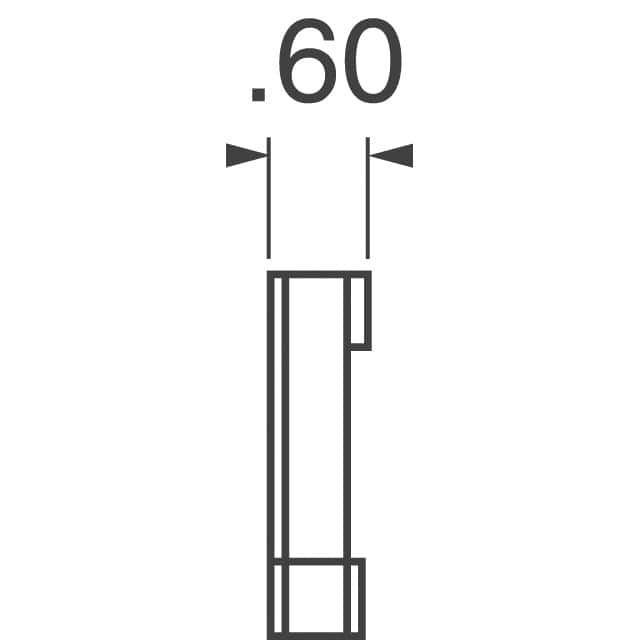

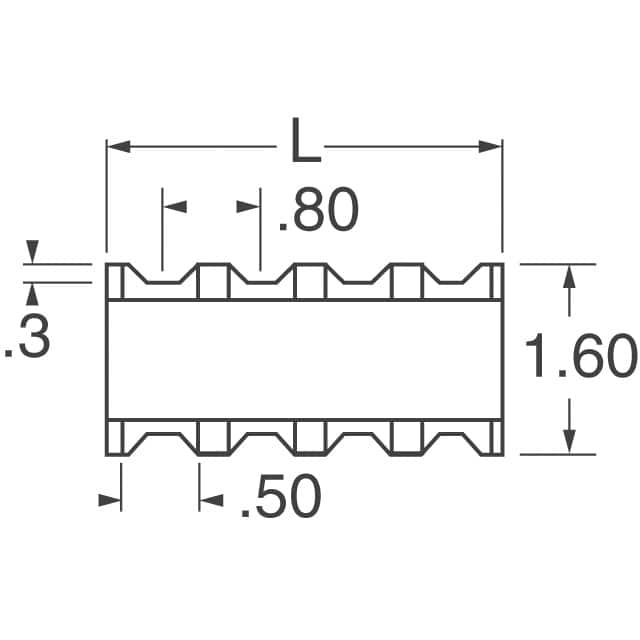

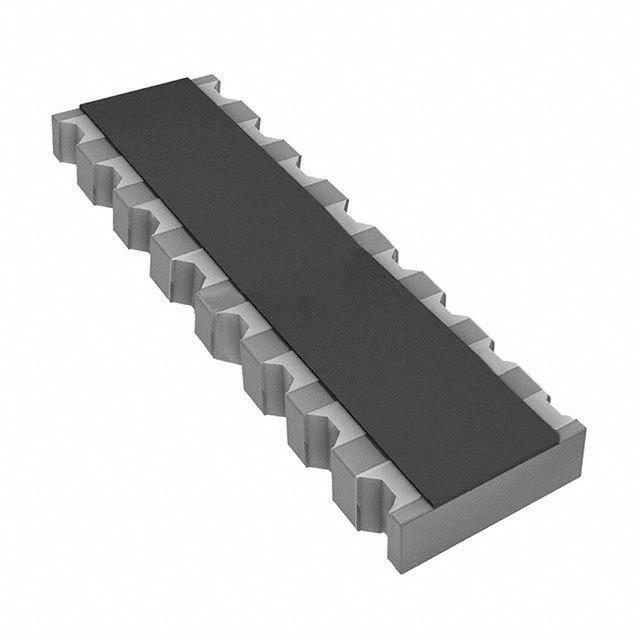

This 742C163101JP resistor array by CTS packs multiple resistors into one IC chip. This product&s;s 8 resistors have a value of 100 Ohm. This dependable part has a power rating of 0.5 1/2 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 16 terminals. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product&s;s terminal pitch is 0.8 mm. The 742C163101JP part has a concave termination style. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This product is 6.4 mm long, 0.53 mm tall and 1.6 mm deep. This device is made with thick film technology.
Chip1Stop:
Res Thick Film Array 100 Ohm 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16-Pin 25068 X 0603 Concave SMD T/R
Verical:
Res Thick Film Array 100 Ohm 5% 0.5W1/2W ±200ppm/C ISOL 16-Pin 25068 X 0603 Concave SMD Medical T/R
MASTER:
Res Thick Film Array 100 Ohm 5% 0.5W1/2W ±200ppm/°C ISOL 16-Pin 25068 X 0603 Concave SMD T/R
Win Source:
RES ARRAY 8 RES 100 OHM 2506
Electro Sonic:
Res Thick Film Array 100 Ohm 5% 0.5W1/2W ±200ppm/°C ISOL 16-Pin 25068 X 0603 Concave SMD T/R
