Res Thick Film Array 270Ω 5% 0.5W1/2W ±200ppm/℃ ISOL Molded 16Pin 25068 X 0603 Concave SMD T/R
270 欧姆 ±5% 62.5mW 每元件功率 隔离 8 器网络,阵列 ±200ppm/°C 2506,凹陷,长边端子
得捷:
RES ARRAY 8 RES 270 OHM 2506
立创商城:
270Ω ±5%
艾睿:

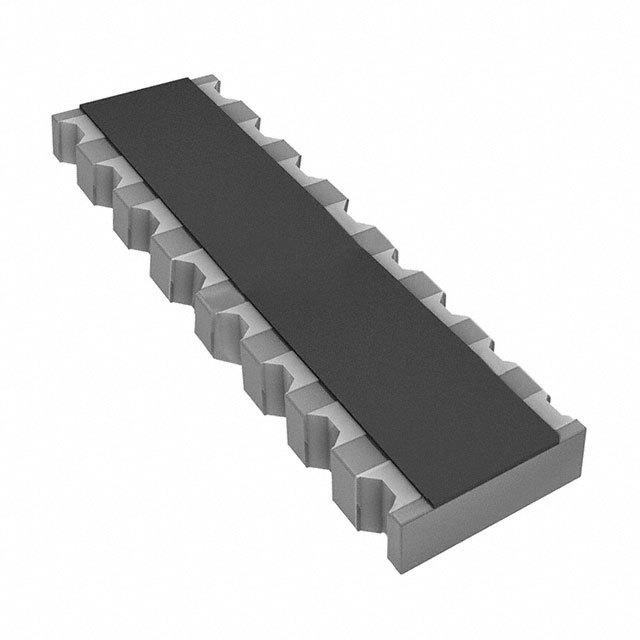

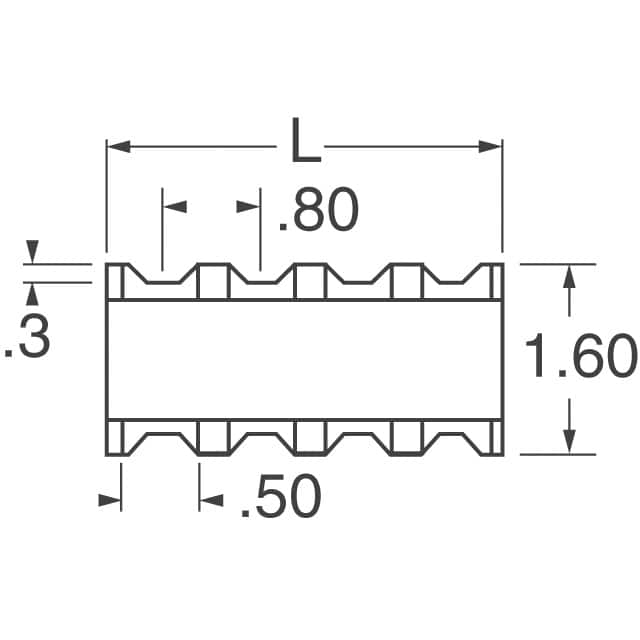

Are you looking for a power-saving component that can be implemented in your circuit design? CTS brings you their 742C163271JP resistor array, essentially an IC chip with multiple resistors built in. Its temperature coefficient is ±200 ppm/°C. This product&s;s 8 resistors have a value of 270 Ohm. This dependable part has a power rating of 0.5 1/2 W and a power rating per resistor of 0.063 1/16 W. It has 16 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. The 742C163271JP part has a concave termination style. This device utilizes thick film technology. This product is 6.4 mm long, 0.53 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm.
容差 ±5 %
额定功率 0.5 W
耗散功率 0.063 W
电阻 270 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 16
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.53 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 DDR SDRAM,DRAM,MDDR, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
