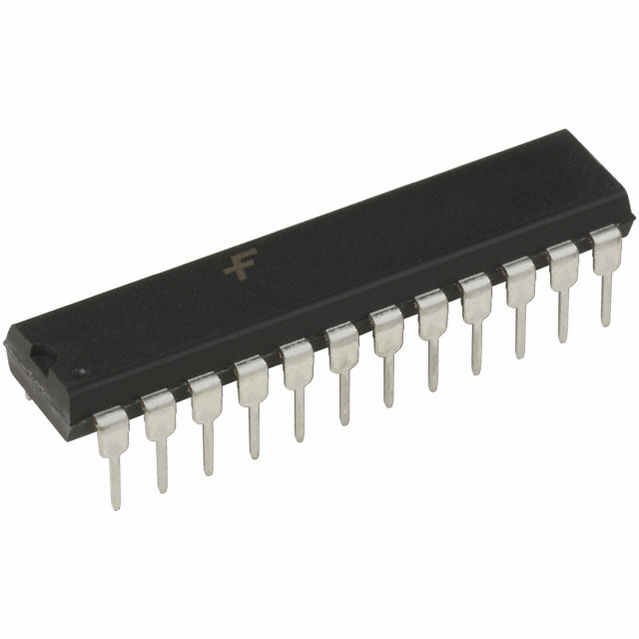

宁静系列10位透明锁存器带3态输出 Quiet Series 10-Bit Transparent Latch with 3-STATE Outputs
General Description
The ACTQ841 bus interface latch is designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider address/data paths or buses carrying parity. The 841 is a 10-bit transparent latch, a 10-bit version of the 373. The ACTQ841 utilizes Quiet Seriestechnology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTO™ output control and undershoot corrector in addition to a split ground bus for superior per formance.
Features
■Guaranteed simultaneous switching noise level and dynamic threshold performance
■Guaranteed pin-to-pin skew AC performance
■Inputs and outputs on opposite sides of package allow easy interface with microprocessors
■Improved latch-up immunity
■Outputs source/sink 24 mA
■Has TTL-compatible inputs
