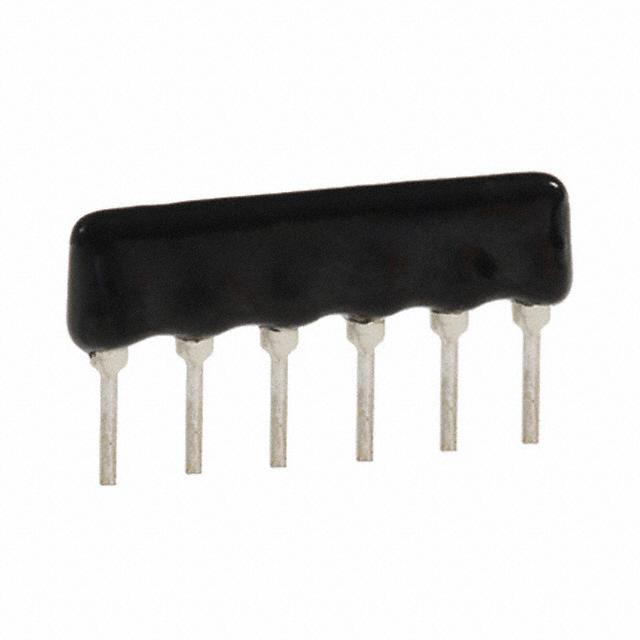

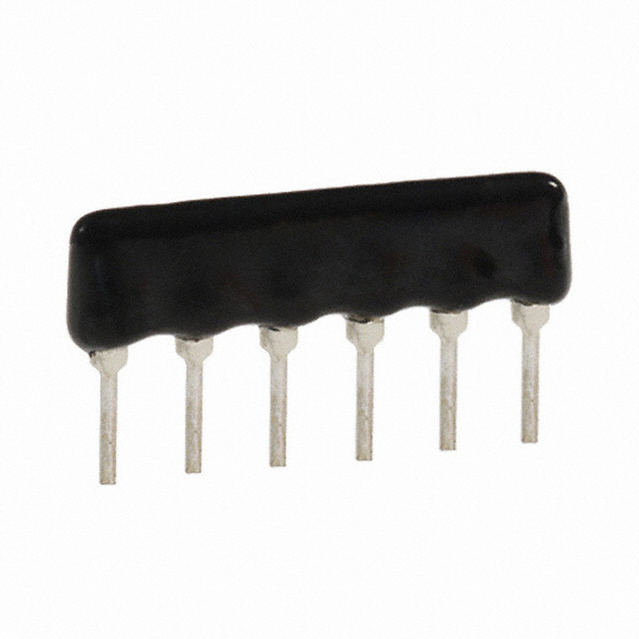

77061102P

Res Thick Film NET 1KΩ 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6Pin SIP Pin Thru-Hole Bulk

1k 欧姆 ±2% 100mW 每元件功率 总线式 5 器网络，阵列 ±100ppm/°C 6-SIP

立创商城:
1kΩ ±2%

贸泽:
Resistor Networks & Arrays 1Kohms 6Pin 2% Bussed

艾睿:
By combining multiple resistors into a single chip, the 77061102P resistor array, developed by CTS, can help you save space and power in your circuit design. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. This product&s;s 5 resistors have a value of 1K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. The 77061102P part has a pin termination style. It has a tolerance of 2%. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep.

Chip1Stop:
Res Thick Film NET 1K Ohm 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
