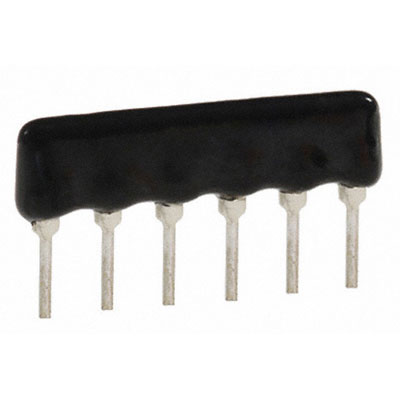

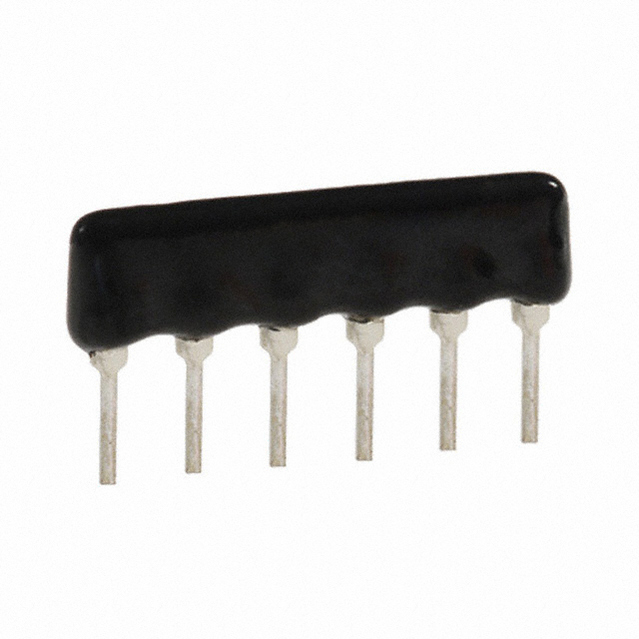

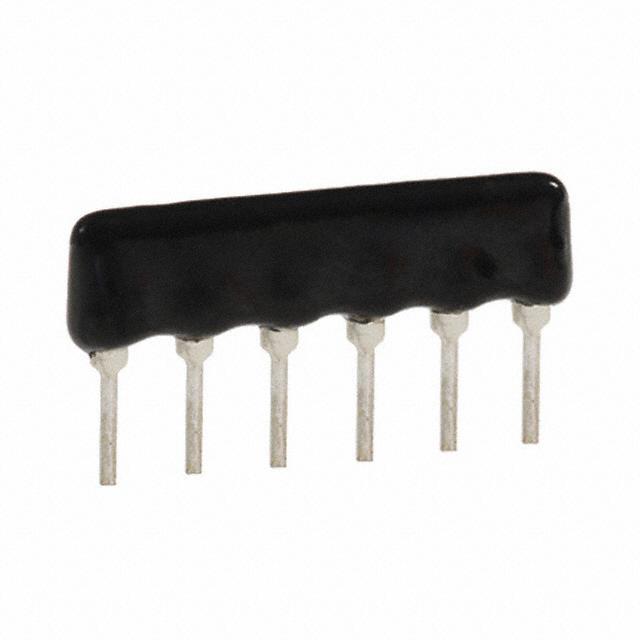

77061472P

Res Thick Film NET 4.7KΩ 2% 4/5W 100ppm/℃ BUS Conformal 6Pin SIP Pin Thru-Hole Bulk

Conserve space and power by adopting this resistor array from , allowing multiple configurations of resistors to be downsized into an IC. This product"s 5 resistors have a value of 4.7K Ohm. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This part has an operating temperature of -55 to 125 °C. The 77061472P part has a pin termination style. This device utilizes thick film technology. This product"s terminal pitch is 2.54 mm. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep. It has a tolerance of 2%.
