77061223P

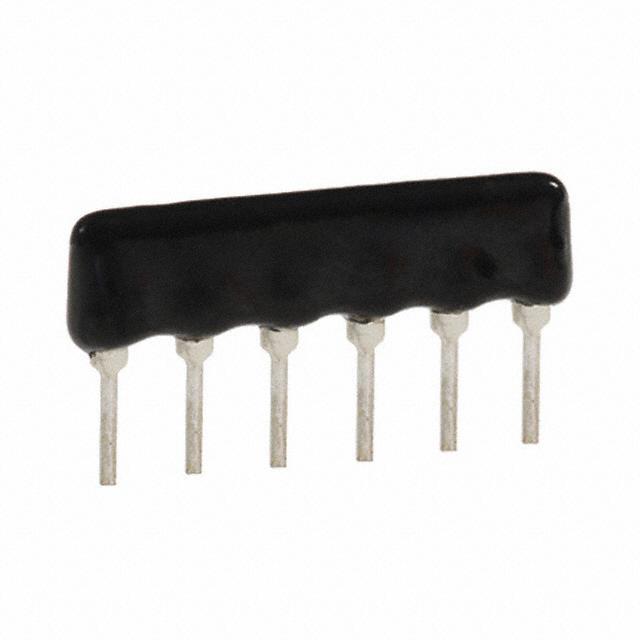

77061223P图片1
77061223P图片2
77061223P图片3
77061223P图片4
77061223P概述

Res Thick Film NET 22KΩ 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6Pin SIP Pin Thru-Hole Bulk

If you"re looking to conserve space in your circuit design, then this resistor array from will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±100 ppm/°C. This product"s 5 resistors have a value of 22K Ohm. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This device is made with thick film technology. The 77061223P part has a pin termination style. This product"s terminal pitch is 2.54 mm.

77061223P中文资料参数规格
技术参数

触点数 6

额定电压DC 100 V

容差 ±2 %

额定功率 0.8 W

电阻 22 kΩ

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 6

封装 SIP-6

外形尺寸

长度 15.24 mm

宽度 2.41 mm

高度 4.95 mm

封装 SIP-6

厚度 2.41 mm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买77061223P
型号: 77061223P
制造商: CTS 西迪斯
描述:Res Thick Film NET 22KΩ 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6Pin SIP Pin Thru-Hole Bulk
替代型号77061223P
型号/品牌 代替类型 替代型号对比

77061223P

CTS 西迪斯

当前型号

当前型号

77061223

西迪斯

完全替代

77061223P和77061223的区别
