77061331P

Res Thick Film NET 330Ω 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6Pin SIP Pin Thru-Hole Bulk

330 Ohm ±2% 100mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP

立创商城:
330Ω ±2%

艾睿:

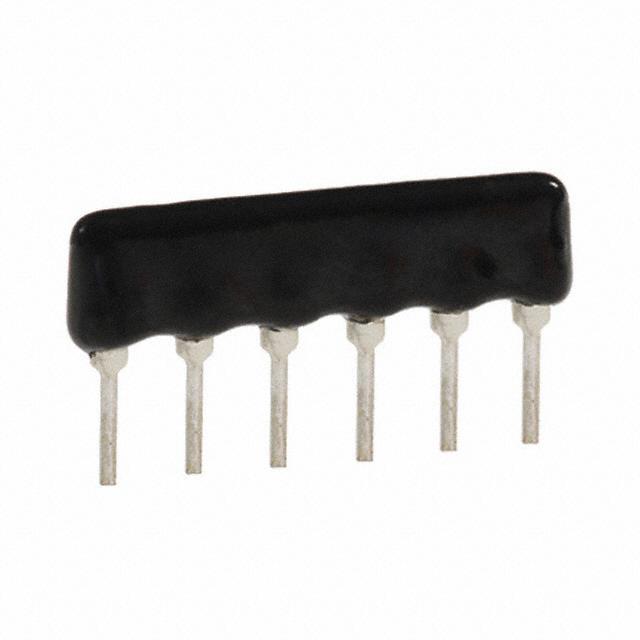

Pack multiple resistors into a single chip with this 77061331P resistor array from CTS. Its temperature coefficient is ±100 ppm/°C. This product&s;s 5 resistors have a value of 330 Ohm. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. The 77061331P part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm.

安富利:
Res Cermet NET 330 Ohm 2% 4/5W ±100ppm/°C BUS Conformal 6-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 330 Ohm 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
