电阻器网络与阵列 180ohms 6Pin 2% Bussed
180 Ohm ±2% 100mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 6-SIP
立创商城:
180Ω ±2%
贸泽:
电阻器网络与阵列 180ohms 6Pin 2% Bussed
艾睿:

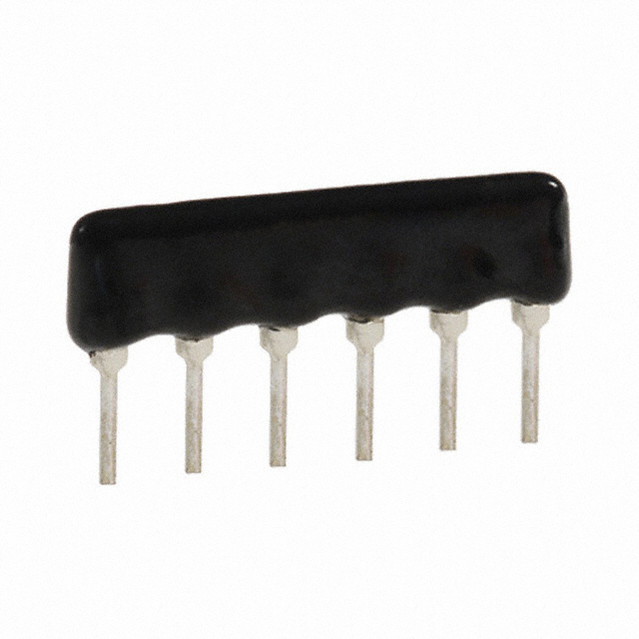

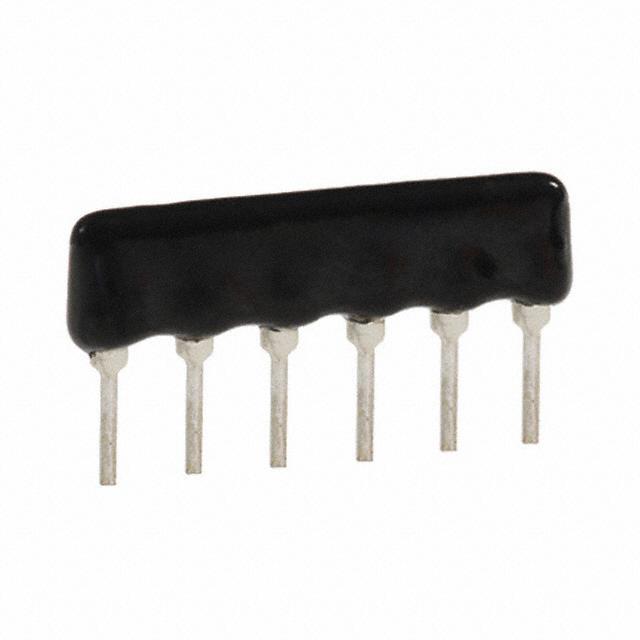

Downsize multiple resistors onto a single chip with the 77061181P resistor array, developed by CTS. Its temperature coefficient is ±100 ppm/°C. This product&s;s 5 resistors have a value of 180 Ohm. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 2%. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 2.54 mm. The 77061181P part has a pin termination style. This device is made with thick film technology.
Chip1Stop:
Res Thick Film NET 180 Ohm 2% 0.8W ±100ppm/℃ BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
