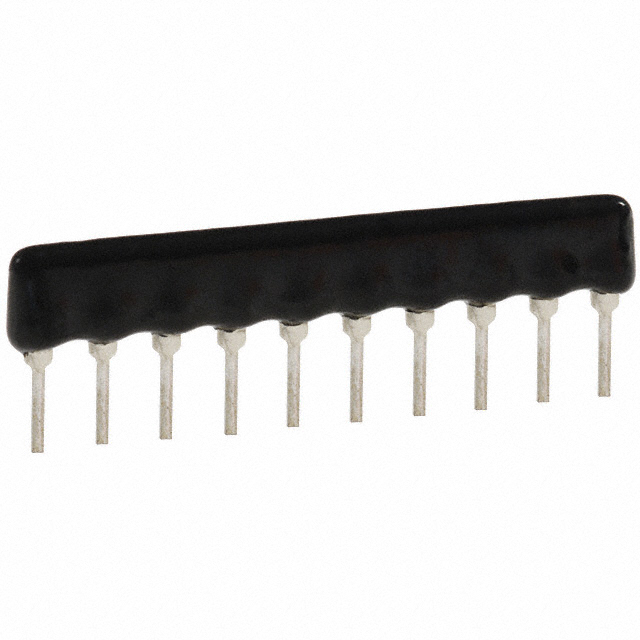

Res Thick Film NET 1M Ohm 2% 1.4W 100ppm/℃ BUS Conformal Coated 10Pin SIP Pin Thru-Hole Bulk
1M 欧姆 ±2% 100mW 每元件功率 总线式 9 器网络，阵列 ±100ppm/°C 10-SIP
得捷:
RES ARRAY 9 RES 1M OHM 10SIP
立创商城:
1MΩ ±2%
艾睿:
Res Thick Film NET 1M Ohm 2% 1.4W ±100ppm/°C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 1M Ohm 2% 1.4W ±100ppm/℃ BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
Verical:
Res Thick Film NET 1M Ohm 2% 1.4W ±100ppm/C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
Electro Sonic:
Res Thick Film NET 1M Ohm 2% 1.4W ±100ppm/°C BUS Conformal Coated 10-Pin SIP Pin Thru-Hole Bulk
触点数 10
额定电压DC 100 V
容差 ±2 %
额定功率 1.4 W
电阻 1 MΩ
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 10
封装 SIP-10
长度 25.4 mm
宽度 2.5 mm
高度 4.95 mm
封装 SIP-10
厚度 2.41 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
