767163181GP

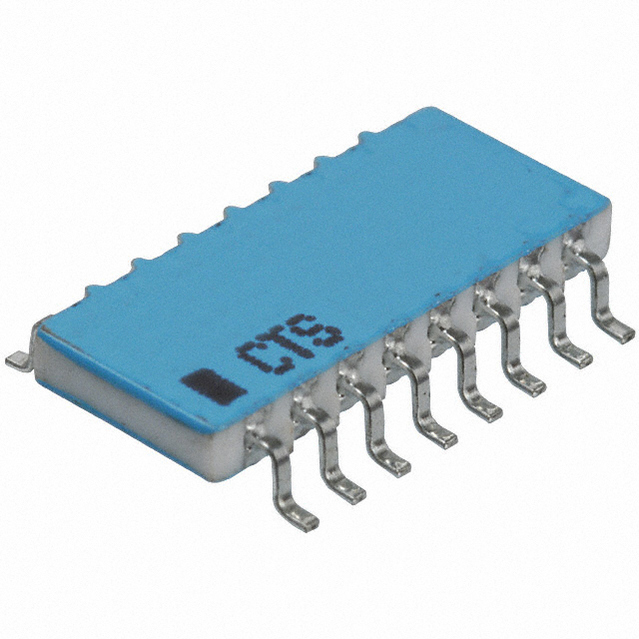

767163181GP图片1
767163181GP图片2
767163181GP图片3
767163181GP图片4
767163181GP概述

Res Thick Film NET 180Ω 2% 2.3W ±100ppm/℃ ISOL Ceramic 16Pin SOGN Gull Wing SMD T/R/Slide Pack

180 Ohm ±2% 200mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 16-SOIC 0.220", 5.59mm Width


立创商城:
180Ω ±2%


艾睿:
If you&s;re looking to conserve space in your circuit design, then this 767163181GP resistor array from CTS will save you valuable space by packing multiple resistors into one IC chip. This product&s;s 8 resistors have a value of 180 Ohm. Its temperature coefficient is ±100 ppm/°C. This dependable part has a power rating of 2.3 W and a power rating per resistor of 0.3 W. It has 16 terminals. This part has an operating temperature of -55 to 125 °C. This product is 11.18 mm long, 2.16 mm tall and 7.62 mm deep. The 767163181GP part has a gull wing termination style. This device utilizes thick film technology. This product&s;s terminal pitch is 1.27 mm. It has a tolerance of 2%.


Chip1Stop:
Res Thick Film NET 180 Ohm 2% 2.3W ±100ppm/ÂÂ℃ ISOL Ceramic 16-Pin SOGN Gull Wing SMD T/R/Slide Pack


Verical:
Res Thick Film NET 180 Ohm 2% 2.3W ±100ppm/C ISOL Ceramic 16-Pin SOGN Gull Wing SMD T/R/Slide Pack


Electro Sonic:
15 Resistor Isolated Network - 180 ohm +/- 2% - 200mW - SOIC-16 - RoHS - Bulk Pkg


767163181GP中文资料参数规格
技术参数

触点数 16

额定电压DC 100 V

容差 ±2 %

额定功率 2.3 W

电阻 180 Ω

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 16

封装 SOIC-16

外形尺寸

长度 11.18 mm

宽度 7.62 mm

高度 2.16 mm

封装 SOIC-16

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买767163181GP
型号: 767163181GP
制造商: CTS 西迪斯
描述:Res Thick Film NET 180Ω 2% 2.3W ±100ppm/℃ ISOL Ceramic 16Pin SOGN Gull Wing SMD T/R/Slide Pack
替代型号767163181GP
型号/品牌 代替类型 替代型号对比

767163181GP

CTS 西迪斯

当前型号

当前型号

767163181GPTR13

西迪斯

完全替代

767163181GP和767163181GPTR13的区别

767163181G

西迪斯

完全替代

767163181GP和767163181G的区别
