Res Thick Film NET 200Ω 2% 1.8W 100ppm/℃ ISOL Ceramic 16Pin SOGN Gull Wing SMD T/R/Slide Pack
Res Thick Film NET 200 Ohm 2% 1.8W ±100ppm/°C ISOL Ceramic 16-Pin SOGN Gull Wing SMD Tube
立创商城:
200Ω ±2%
贸泽:
Resistor Networks & Arrays 200ohms 16Pin 2% Isolated
艾睿:

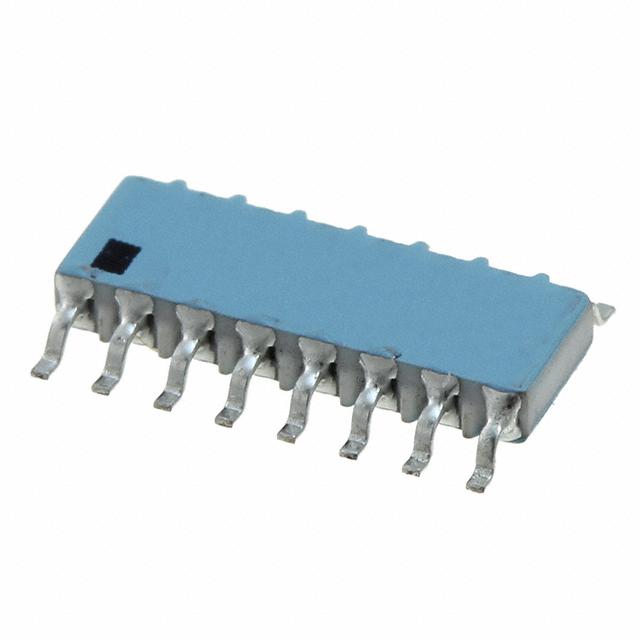

Downsize multiple resistors onto a single chip with the 766163201GP resistor array, developed by CTS. Its temperature coefficient is ±100 ppm/°C. This product&s;s 8 resistors have a value of 200 Ohm. This dependable part has a power rating of 1.8 W and a power rating per resistor of 0.24 W. It has 16 terminals. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This product&s;s terminal pitch is 1.27 mm. This product is 9.9 mm long, 1.55 mm tall and 6 mm deep. The 766163201GP part has a gull wing termination style.
Chip1Stop:
Res Thick Film NET 200 Ohm 2% 1.8W 100ppm/ C ISOL Ceramic 16-Pin SOGN Gull Wing SMD T/R/Slide Pack
Verical:
Res Thick Film NET 200 Ohm 2% 1.8W ±100ppm/C ISOL Ceramic 16-Pin SOGN Gull Wing SMD Bulk
Online Components:
Res Thick Film NET 200 Ohm 2% 1.8W ±100ppm/°C ISOL Ceramic 16-Pin SOGN Gull Wing SMD Tube
Electro Sonic:
15 Resistor Isolated Network - 200 ohm +/- 2% - 160mW - SOIC-16 - RoHS - Bulk Pkg
触点数 16
额定电压DC 50.0 V
容差 ±2 %
额定功率 1.8 W
电阻 200 Ω
阻值偏差 ±2 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 9.9 mm
宽度 6 mm
高度 1.55 mm
封装 SOIC-16
厚度 2.67 mm
工作温度 -55℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
