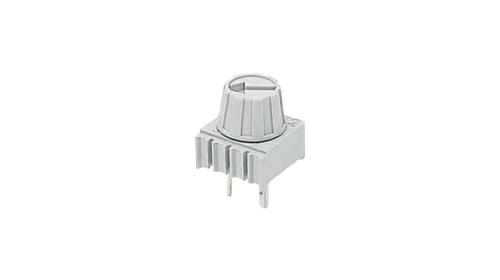

72 系列 3/8 英寸 方形 1 MOhm ±10 % 单圈 微调电位器
1 MOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 1.0 匝 顶部调节
得捷:
TRIMMER 1M OHM 0.5W PC PIN TOP
艾睿:
This 72PTR1MEGLF potentiometer from BI Technologies TT electronics is your solution to resistance calibration in a circuit. This dependable part has a power rating of 0.5 1/2 W. This product has a resistance value of 1M Ohm. Its temperature coefficient is ±100 ppm/°C. This device utilizes cermet technology. This part has an operating temperature of -55 to 125 °C. The 72PTR1MEGLF part has a pin termination style. It has a tolerance of 10%. This product is 9.53 mm long, 10.41 mm tall and 9.53 mm deep.
Chip1Stop:
Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 8.38mm 9.53 X 9.53 X 10.41mm Pin Thru-Hole Box
Verical:
Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 8.38mm 9.53 X 9.53 X 10.41mm Pin Thru-Hole Box
MASTER:
Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 8.38mm 9.53 X 9.53 X 10.41mm Pin Thru-Hole Box
Online Components:
Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 8.38mm 9.53 X 9.53 X 10.41mm Pin Thru-Hole Box
Electro Sonic:
Res Cermet Trimmer 1M Ohm 10% 0.5W1/2W 1Elec/1MechTurn 8.38mm 9.53 X 9.53 X 10.41mm Pin Thru-Hole Box
