752101103GPTR

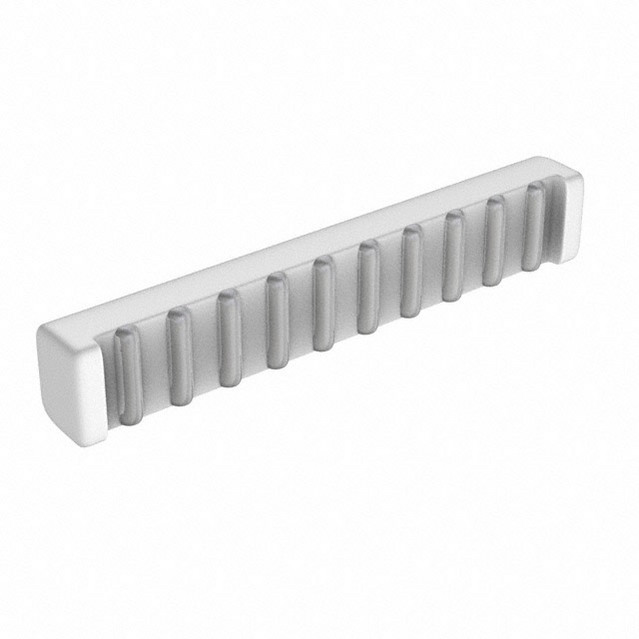

752101103GPTR图片1
752101103GPTR图片2
752101103GPTR图片3
752101103GPTR概述

Res Thick Film NET 10KΩ 2% 1.4W ±200ppm/℃ BUS Molded 10Pin Single Row SMD T/R

By combining multiple resistors into a single chip, the resistor array, developed by , can help you save space and power in your circuit design. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 1.4 W and a power rating per resistor of 0.12 W. This product"s 9 resistors have a value of 10K Ohm. It has 10 terminals. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 2%. This device utilizes thick film technology. This product"s terminal pitch is 1.27 mm. The 752101103GPTR part has a single row termination style. This product is 14.35 mm long, 2.41 mm tall and 2.03 mm deep.

752101103GPTR中文资料参数规格
技术参数

触点数 10

额定电压DC 25.0 V

额定功率 1.4 W

电阻 10 KΩ

阻值偏差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 10

封装 SMD-10

外形尺寸

长度 14.35 mm

宽度 2.03 mm

高度 2.41 mm

封装 SMD-10

厚度 2.03 mm

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买752101103GPTR
型号: 752101103GPTR
制造商: CTS 西迪斯
描述:Res Thick Film NET 10KΩ 2% 1.4W ±200ppm/℃ BUS Molded 10Pin Single Row SMD T/R
