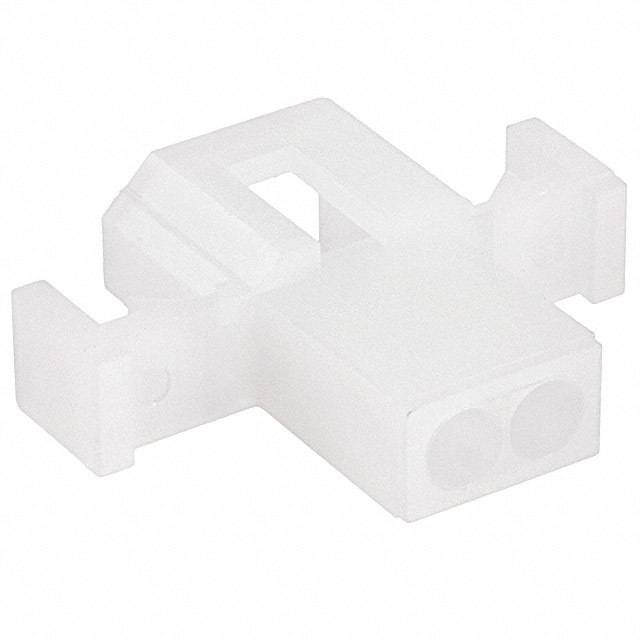

管脚和插座连接器 2 POS IN LINE PLUG
02P .062 COMM P&S; PLUG
Product Highlights
Housing
Contact Diameter = 1.57 mm
Number of Circuits = 2
Mount = Panel Mount
One Piece Housing
得捷:
CONN PLUG W/DETENT 2POS .062
贸泽:
管脚和插座连接器 2 POS IN LINE PLUG
艾睿:
This 770341-1 discrete wire housing from TE Connectivity has secure locking mechanisms when used for larger power applications. This PL connector has 2 PL contacts. This is a 1-row connector. It has a plug type gender. It has a straight body orientation. Its pitch is 3.68 mm. It has a maximum voltage rating of 250 VDC|250VAC. 770341-1 is housed in natural nylon. Its wire is 18-30 AWG. This rectangle connector has an operating temperature of -55 to 105 °C. This product is 24.38 mm long, 7.62 mm tall and 19.81 mm deep.
安富利:
Conn Housing PL 2 POS 3.68mm ST Individual
Verical:
Conn Housing PL 2 POS 3.68mm ST Panel Mount Natural Box
Newark:
# AMP - TE CONNECTIVITY 770341-1 Connector Housing, Commercial 0.062" Series, Plug, 2 Positions, 3.68 mm
MASTER:
PLUG,PANEL MOUNT, 2 CIRCUIT,.062 PIN AND SOCKET
Powell:
.062" Commercial Pin & Socket Connector
Online Components:
02P .062 COMM P&S; PLUG
Electro Sonic:
02P .062 COMM P&S; PLUG
触点数 2
极性 Male
排数 1
电路数 2
易燃性等级 UL 94 V-2
针脚数 2
额定电流Max 7A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Panel
引脚间距 3.68 mm
长度 11.2 mm
宽度 19.8 mm
高度 7.62 mm
引脚间距 3.68 mm
外壳颜色 Natural
颜色 Natural
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Box
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
