776522-4概述

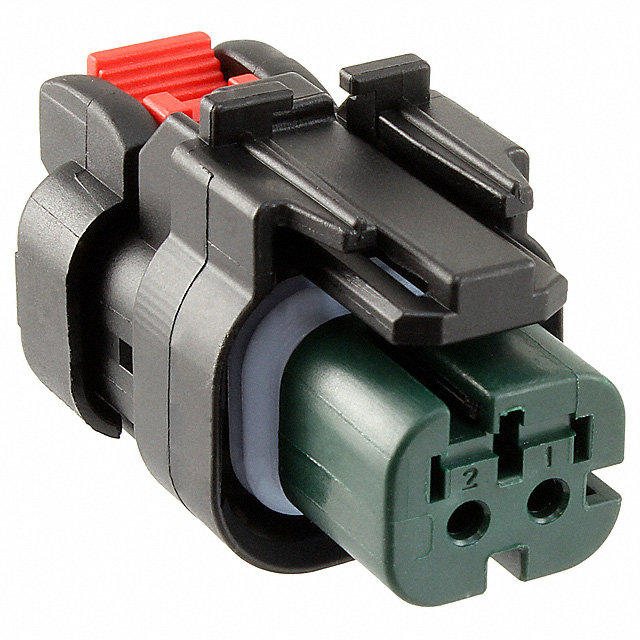

Conn Housing PL 2POS 4.5mm Crimp ST Cable Mount

AMPSEAL 16 housings are environmentally sealed wire-to-wire and wire-to-device connectors that accept the Heavy Duty Stamped & Formed HDSF size 16 contacts rated up to 13 amps each. They feature an integrated latch for mating and are available in 2, 3, 4, 6, 8, and 12-way arrangements.


得捷:
CONN PLUG HSG 2POS 4.50MM


艾睿:
Use this 776522-4 discrete wire housing from TE Connectivity for a durable connection between discrete wires. This PL connector has 2 PL contacts. This is a 1-row connector. It has a plug type gender. It has a straight body orientation. Its pitch is 4.5 mm. This product is 23.5 mm tall. 776522-4 is housed in green thermoplastic.


安富利:
Conn Housing PL 2 POS 4.5mm Crimp ST Cable Mount


Chip1Stop:
Conn Housing PL 2 POS 4.5mm Crimp ST Cable Mount


Verical:
Conn Housing PL 2 POS 4.5mm Crimp ST Cable Mount Green Package Automotive


Newark:
# AMP - TE CONNECTIVITY  776522-4  AS 16, 2P PLUG ASSY, RD, KEY 4 New


MASTER:
PLUG ASSEMBLY, 2 POSITION, SINGLE ROW REDUCED DIA WIRE SEAL, AMPSEAL 16


Online Components:
AS 16, 2P PLUG ASSY, RD, KEY 4


Electro Sonic:
AS 16, 2P PLUG ASSY, RD, KEY 4


776522-4中文资料参数规格
技术参数

触点数 2

排数 1

易燃性等级 UL 94 HB

针脚数 2

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压Max 250 VDC

外形尺寸

长度 20.33 mm

宽度 36.75 mm

高度 23.5 mm

物理参数

外壳颜色 Green

颜色 Black

材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536906000

数据手册

在线购买776522-4
型号: 776522-4
描述:Conn Housing PL 2POS 4.5mm Crimp ST Cable Mount
