776433-3

776433-3图片1
776433-3图片2
776433-3图片3
776433-3图片4
776433-3图片5
776433-3图片6
776433-3图片7
776433-3图片8
776433-3图片9
776433-3图片10
776433-3图片11
776433-3概述

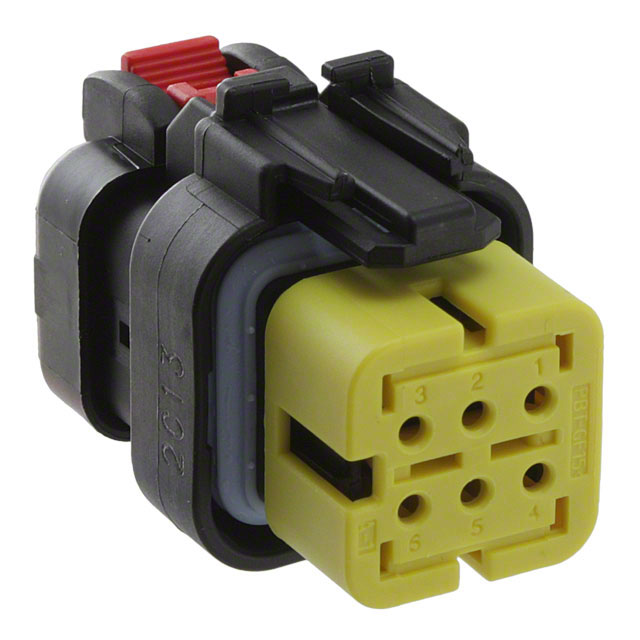

压盖, AS 16, 6P 插头组件, KEY 3

6 矩形 - 外壳 插头 黑色 0.177"(4.50mm)


立创商城:
776433-3


得捷:
CONN PLUG HSG 6POS 4.50MM


贸泽:
Automotive Connectors AS 16 6P PLUG ASSY KEY 3


e络盟:
压盖, AS 16, 6P 插头组件, KEY 3


艾睿:
This 776433-3 discrete wire housing from TE Connectivity is designed for both small electronic devices as well as larger power applications. This PL connector has 6 PL contacts. This is a 2-row connector. It has a straight body orientation. Its pitch is 4.5 mm. It has a plug type gender. This product is 31 mm tall. 776433-3 is housed in yellow thermoplastic.


安富利:
Conn Housing PL 6 POS 4.5mm Crimp ST


Verical:
Conn Housing PL 6 POS 4.5mm Crimp ST Cable Mount Yellow Package Automotive


Newark:
# AMP - TE CONNECTIVITY  776433-3  AS 16, 6P PLUG ASSY, KEY 3 New


MASTER:
PLUG ASSEMBLY, 6 POSITION, DUAL ROW, AMPSEAL 16


Online Components:
AS 16, 6P PLUG ASSY, KEY 3


Electro Sonic:
AS 16, 6P PLUG ASSY, KEY 3


776433-3中文资料参数规格
技术参数

触点数 6

额定电流 13 A

排数 2

易燃性等级 UL 94 HB

针脚数 6

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压Max 250 VDC

额定电压 250 VDC

封装参数

封装 插件

外形尺寸

长度 25.33 mm

宽度 36.6 mm

高度 31 mm

封装 插件

物理参数

外壳颜色 Yellow

颜色 Yellow

材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538906000

数据手册

在线购买776433-3
型号: 776433-3
描述:压盖, AS 16, 6P 插头组件, KEY 3
