776437-3

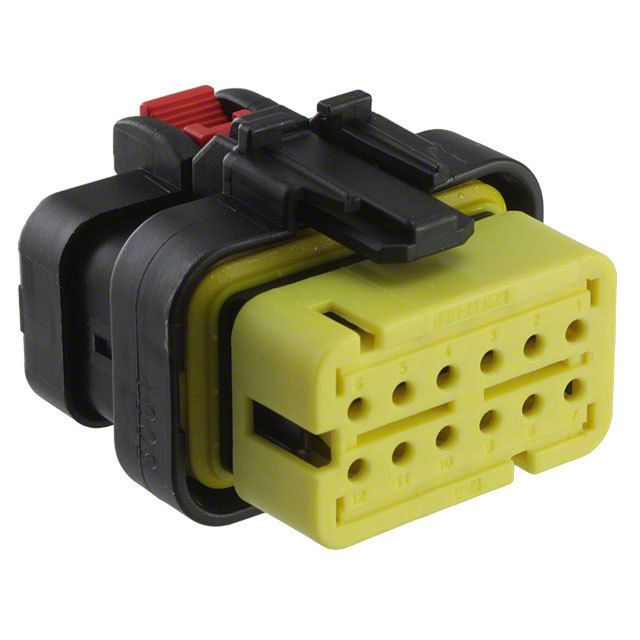

776437-3图片1
776437-3图片2
776437-3图片3
776437-3图片4
776437-3图片5
776437-3图片6
776437-3图片7
776437-3概述

Conn Housing PL 12POS 4.5mm Crimp ST Cable Mount Automotive Package

AMPSEAL 16 housings are environmentally sealed wire-to-wire and wire-to-device connectors that accept the Heavy Duty Stamped & Formed HDSF size 16 contacts rated up to 13 amps each. They feature an integrated latch for mating and are available in 2, 3, 4, 6, 8, and 12-way arrangements.


得捷:
CONN PLUG ASSY 12PS 14-18AWG YEL


贸泽:
Automotive Connectors AS 16 12P PLUG ASSY KEY 3


艾睿:
Conn Housing PL 12 POS 4.5mm Crimp ST Cable Mount Yellow Package Automotive


安富利:
Conn Housing PL 12 POS 4.5mm Crimp ST


Verical:
Conn Housing PL 12 POS 4.5mm Crimp ST Cable Mount Yellow Package Automotive


Newark:
# AMP - TE CONNECTIVITY  776437-3  AS 16, 12P PLUG ASSY, KEY 3 New


MASTER:
AS 16, 12P PLUG ASSY, KEY 3


Online Components:
AS 16, 12P PLUG ASSY, KEY 3


Electro Sonic:
AS 16, 12P PLUG ASSY, KEY 3


776437-3中文资料参数规格
技术参数

触点数 12

额定电流 13 A

排数 2

易燃性等级 UL 94 HB

针脚数 12

工作温度Max 125 ℃

工作温度Min -40 ℃

额定电压Max 250 VDC

额定电压 250 VDC

外形尺寸

长度 38.33 mm

宽度 36.8 mm

高度 31.5 mm

物理参数

外壳颜色 Yellow

颜色 Yellow

材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538906000

数据手册

在线购买776437-3
型号: 776437-3
描述:Conn Housing PL 12POS 4.5mm Crimp ST Cable Mount Automotive Package
