7-102398-3

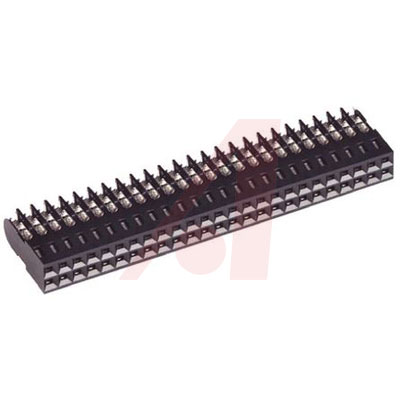

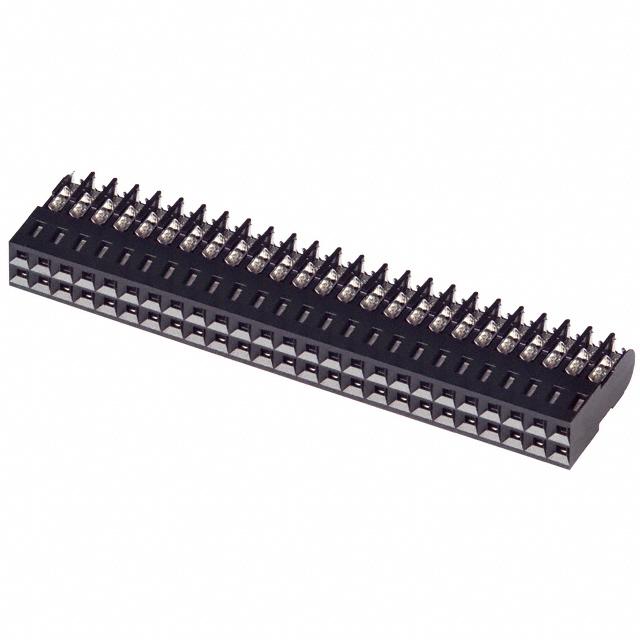

Conn IDC Connector RCP 50POS 2.54mm IDT ST Cable Mount

AMPMODU MT Mass Termination Interconnection System housings are preloaded with standard pressure contacts on 0.100" x 0.100" centers. The contacts are insulation displacement for termination of discrete wires or ribbon cable with conductors separated. Crimp, snap-in contacts can be used interchangeably with the insulation displacement contacts. Connector covers are sold separately. Specifications. Housing: Black thermoplastic, flame retardant. Contacts: Copper alloy; duplex plated 0.000030 μ" gold on the contact area, 0.000050 μ" min. tin on termination area, with entire contact underplated 0.000050 μ" nickel. Rating: 3 Amperes for single contact. UL Recognized, CSA Certified. Operating Temperature: –65°C to +105°C. Mate with posts 0.222"-0.273" in length. Covers: Low profile for double row MT connectors. Material: Black thermoplastic, flame retardant.
