77063223P

Res Thick Film NET 22KΩ 2% 0.8W ±100ppm/℃ ISOL Conformal Coated 6Pin SIP Pin Thru-Hole Bulk

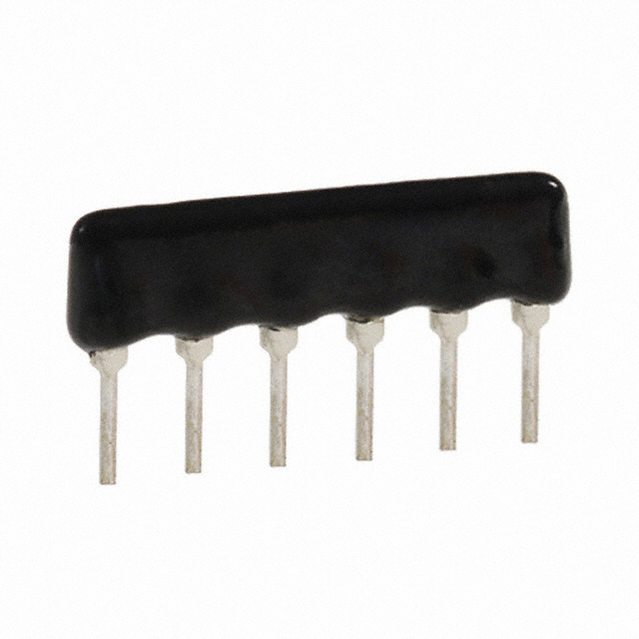

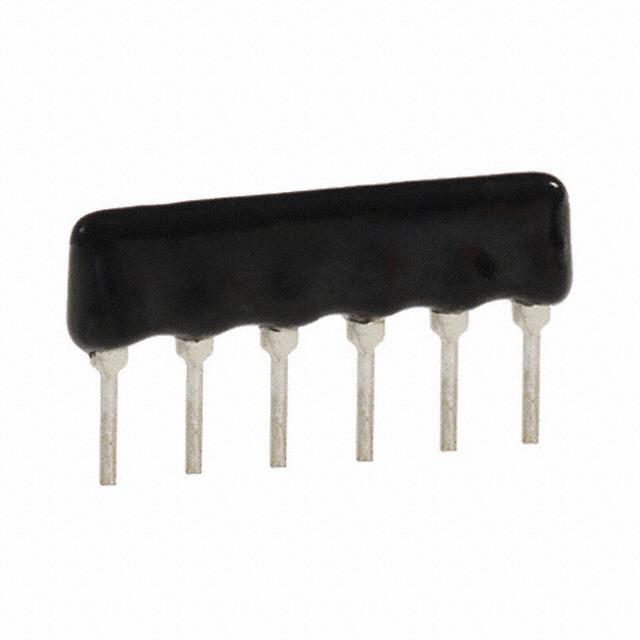

This resistor array by packs multiple resistors into one IC chip. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. This product"s 3 resistors have a value of 22K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. The 77063223P part has a pin termination style. It has a tolerance of 2%. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep. This device utilizes thick film technology. This product"s terminal pitch is 2.54 mm. This part has an operating temperature of -55 to 125 °C.
