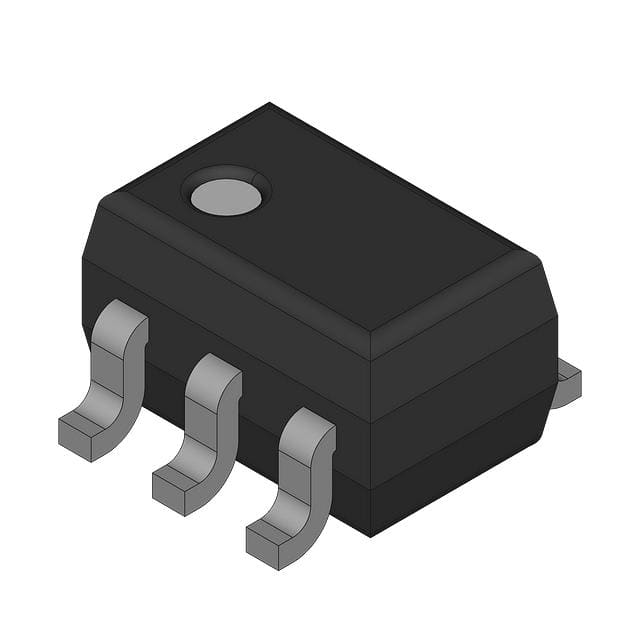

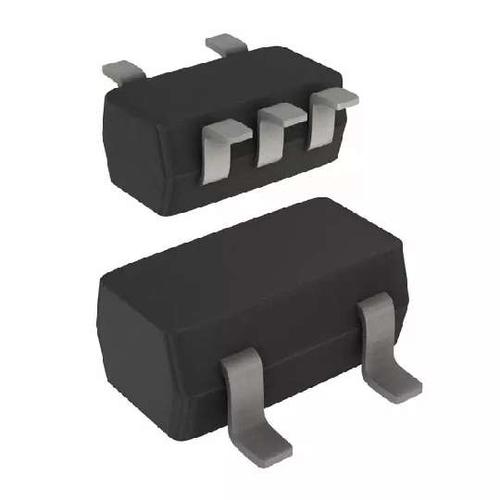

NXP 74LVC1G08GW,125. 芯片, 与门, 1输入, TSSOP-5
The 74LVC1G08GW is a single 2-input AND Gate with inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V applications. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.
电源电压DC 1.65V min
输出接口数 1
输出电流 50 mA
电路数 1
针脚数 5
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5
封装 SOT-323-5
长度 2.25 mm
宽度 1.35 mm
高度 1 mm
封装 SOT-323-5
重量 0.1133981 kg
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
香港进出口证 NLR
