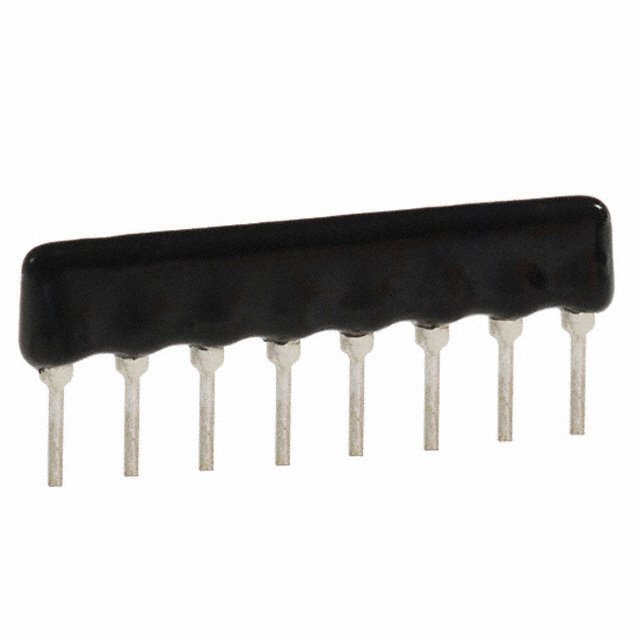

Res Thick Film NET 1.5KΩ 2% 1.1W ±100ppm/℃ ISOL Conformal Coated 8Pin SIP Pin Thru-Hole Bulk
1.5k 欧姆 ±2% 100mW 每元件功率 隔离 4 器网络，阵列 ±100ppm/°C 8-SIP
得捷:
RES ARRAY 4 RES 1.5K OHM 8SIP
艾睿:
Conserve space and power by adopting this 77083152P resistor array from CTS, allowing multiple configurations of resistors to be downsized into an IC. This product&s;s 4 resistors have a value of 1.5K Ohm. This dependable part has a power rating of 1.1 W and a power rating per resistor of 0.15 W. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. It has a tolerance of 2%. This device utilizes thick film technology. This product&s;s terminal pitch is 2.54 mm. The 77083152P part has a pin termination style. This product is 20.32 mm long, 4.95 mm tall and 2.5 mm deep. This part has an operating temperature of -55 to 125 °C.
安富利:
Res Cermet NET 1.5K Ohm 2% 1.1W ±100ppm/°C ISOL Conformal 8-Pin SIP Pin Thru-Hole Bulk
Chip1Stop:
Res Thick Film NET 1.5K Ohm 2% 1.1W ±100ppm/℃ ISOL Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
