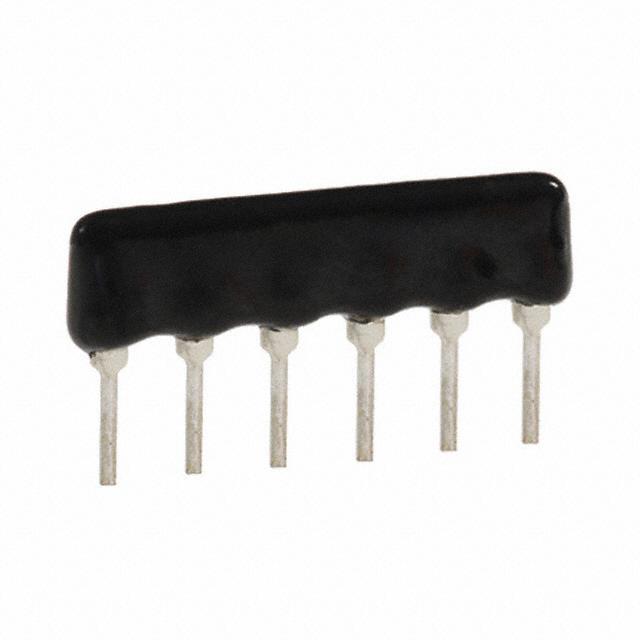

77063203P

Res Thick Film NET 20KΩ 2% 0.8W ±100ppm/℃ ISOL Conformal Coated 6Pin SIP Pin Thru-Hole Bulk

20k Ohm ±2% 100mW Power Per Element Isolated Resistor Network/Array ±100ppm/°C 6-SIP

得捷:
RES ARRAY 3 RES 20K OHM 6SIP

立创商城:
20kΩ ±2%

艾睿:
Conserve space and power by adopting this 77063203P resistor array from CTS, allowing multiple configurations of resistors to be downsized into an IC. This product&s;s 3 resistors have a value of 20K Ohm. This dependable part has a power rating of 0.8 W and a power rating per resistor of 0.15 W. Its temperature coefficient is ±100 ppm/°C. It has 6 terminals. This product comes packaged in bulk, so the parts will be stored loosely. The 77063203P part has a pin termination style. This product is 15.24 mm long, 4.95 mm tall and 2.5 mm deep. It has a tolerance of 2%. This product&s;s terminal pitch is 2.54 mm. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C.

安富利:
Res Cermet NET 20K Ohm 2% 4/5W ±100ppm/°C ISOL Conformal 6-Pin SIP Pin Thru-Hole Bulk

Chip1Stop:
Res Thick Film NET 20K Ohm 2% 0.8W ±100ppm/℃ ISOL Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk
