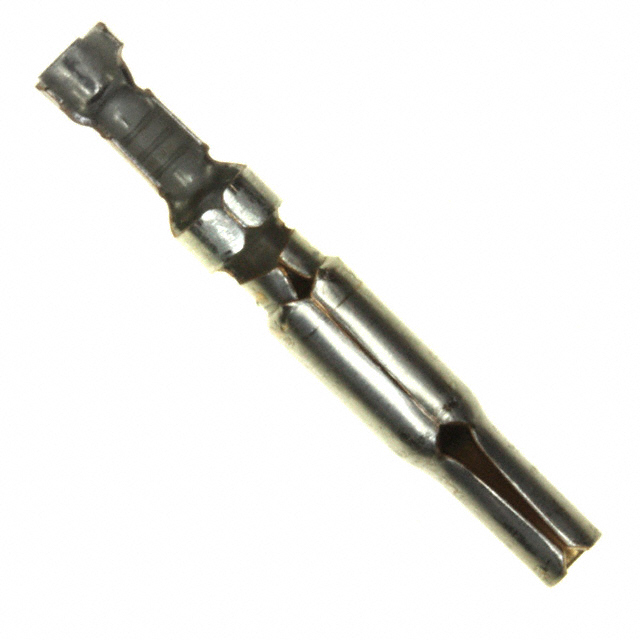

770253-4

Contact; Universal MATE-N-LOK II; 19A; 600VAC; 0.25in.; 0.086in.; 24-18AWG

Contact, 19 A Current Rating, 600 VAC Voltage Rating

* Phosphor bronze contact material

* Housing Kits

* Free-Hanging or Panel Mount Kit = 1 Front and 1 Rear

* Ultimate Reliability

* Not for Interrupting Current

* For Use Where Repair or Replacement Would Be Difficult

* UL File No. E28476

* CSA File No. LR 16455-113

* 0.250 Centerline Spacing

得捷:
CONN SOCKET 18-24AWG CRIMP GOLD

艾睿:
This 770253-4 connector contact from TE Connectivity is will form a perfect mechanical connection, never loose data again. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 13 A. This has a Connector Power connector. It uses the crimp termination method. Its wire is 18-24 AWG. This product is 20.44 mm long, 3.81 mm tall and 3.68 mm deep.

Allied Electronics:
Contact; Universal MATE-N-LOK II; 19A; 600 VAC; 0.25 in.; 0.086 in.; 24-18 AWG

安富利:
Contact PIN Crimp ST Cable Mount Loose Piece

Verical:
Contact SKT Crimp ST Cable Mount 18-24AWG Bag

Newark:
# AMP - TE CONNECTIVITY  770253-4  Contact, Universal MATE-N-LOK II Series, Socket, Crimp, 18 AWG, Gold Plated Contacts

MASTER:
SOCKET, LOOSE PIECE, UNIVERSAL MATE-N-LOK II

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Electro Sonic:
UMNL II SOK SNAUNIPHBZ LP24-18
