770182-2

管脚和插座连接器 9P PIN HDR MATRIX

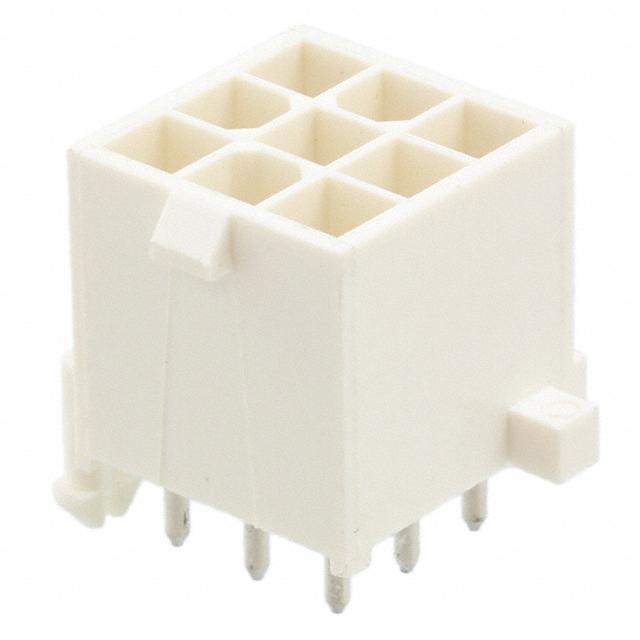

Easily connect a power supply to a circuit with this power connector from . This HDR connector"s 9 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 600 VAC. This connector has a single port. It has a header type gender. Its pitch is 4.14 mm. It has a straight body orientation. 770182-2 is housed in nylon. This device has a maximum current rating of 9.5 A/contact. This power connector has a minimum operating temperature of -20 °C and a maximum of 105 °C. This product is 19.15 mm long, 14.25 mm tall and 16.03 mm deep. Its 9 terminals use the solder termination method.
