733-368

WAGO  733-368  标准接线端子块

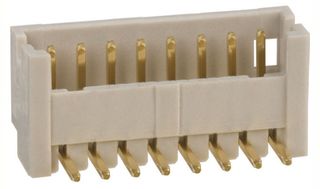

The from Wago is a light gray colour 8-pole, 2.5mm pin spacing male header with angled solder pins and closed end for PCBs. This connector is 100% protected against mismating, only mating halves with the same pole number can be connected together and it is horizontal PCB mounting type. It has ABS, BV, CCA, CSA, DNV GL, KEMA, UR Underwriters Laboratories Inc and LR approvals.

.

Ratings per IEC/EN 60664-1

.

2.5KV rated impulse voltage III / 3, 2.5KV rated impulse voltage III / 2

.

160V rated voltage III/2, 320V rated voltage II / 2 & 6A rated current

.

Single number of levels, robust housing

.

Shock and vibration resistant

.

Polyamide 66 PA 66 insulating material, flammability class per UL94 V0

.

Limit temperature range from -60°C to 100°C

.

Electrolytic copper Ecu contact material with tin contact platting

.

Solder pin length is 3.7mm, drilled hole diameter tolerance is 1.1mm + 0.1

.

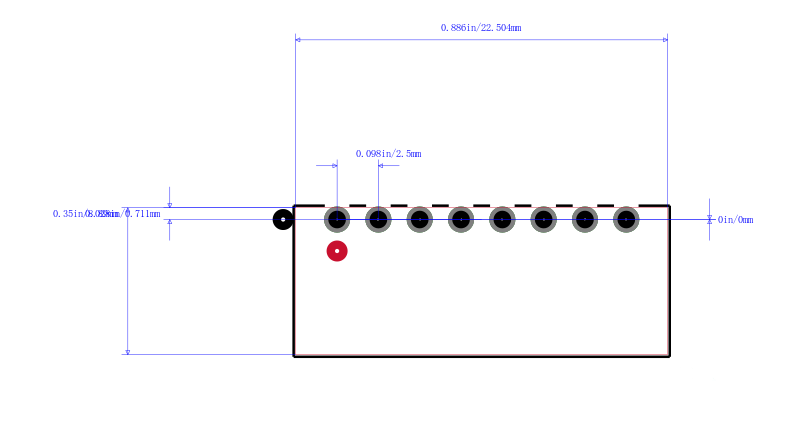

Dimension is 22.5mm x 11.5mm x 8.9mm W x H x D and 1.258g weight
