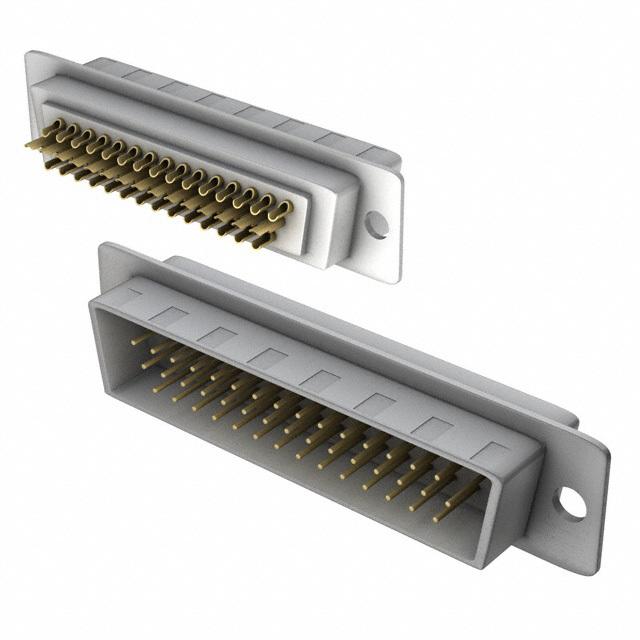

NORCOMP 780-M44-103L001 连接器, D sub, 堆叠式, 高密, Seal D系列, DB, 插头, 44 触点, 钢主体, 焊接
The Seal-D 780-M series solder-cup high-density D-sub Connectors with machined brass contacts with male and female pins, gold flash plating on entire contact and glass-filled PBT thermoplastic insulator, steel with nickel-plating shell. Unique sealing methods maintains STD D-sub profile allowing drop in replacement of current D-sub connectors.
触点数 44
极性 Male
线规 24AWG ~ 28AWG
额定电流 5 A
排数 3
针脚数 44
安装方式 Solder
高度 12.54 mm
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tray
制造应用 Communications & Networking, 工业, Industrial, 计算机和计算机周边, Computers & Computer Peripherals, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
