70040101

STORM INTERFACE  70040101  键盘, STORM 700系列, 50 mA, 24 V, 1 x 4, 矩阵, 4

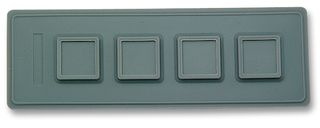

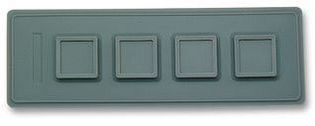

The is a 4-way Keypad for tough environments. The 700 series keypad is intended for use in wet or dirty environments. This modular keypad is designed to withstand the ingress of liquids and other contaminants. It can be easily mounted to a flat surface or can be located beneath a suitable aperture in a fascia panel. The 700 series keypad comes with engineering grade silicone rubber keypad surface, non-ferrous metal coated keypad chassis and gold on nickel-plated FR4 PCB contact circuit.

.

5ms Maximum contact bounce

.

100R Maximum contact resistance

.

50MR Minimum insulation resistance

.

500VAC Breakdown voltage

.

Water sealed and rugged keypad

.

IP67 Protection rating

.

2million Cycles minimum operational life

.

1.5mm Nominal keytop travel

.

160gms Typical actuation force
