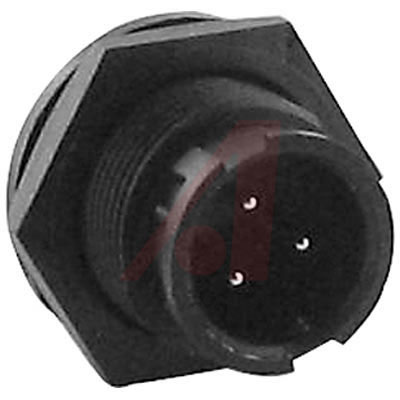

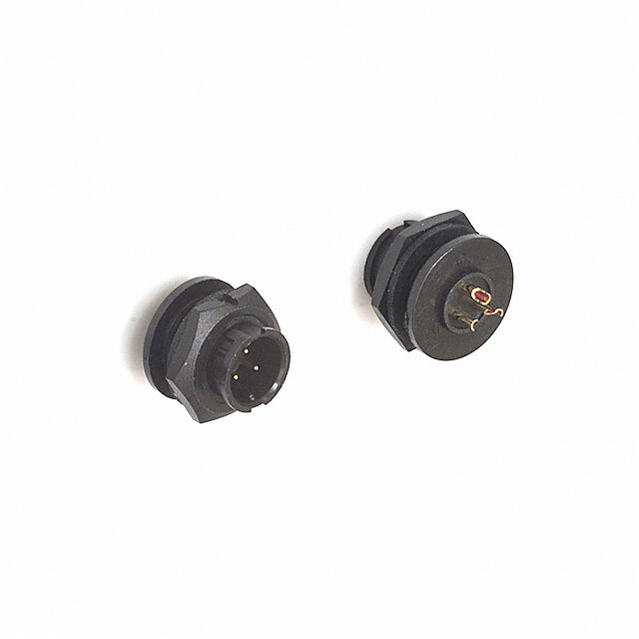

CONXALL 7282-3PG-300 圆形连接器, Mini-Con-X系列, 面板安装插头, 3 触点, 焊接引脚, 尼龙聚酰胺主体
MICRO-CON-X® Field Installable Connectors
Contact arrangements shown are wiring view of cable end pins/sockets. Key/Keyway shown for orientation only.* Provide Quality Solutions Requiring Interconnection in Harsh Environments
* 2-31 Contacts Available
* Applications Include, But Not Limited to, Marine, GPS Systems, Transportation, Etc.
* Ratings: 3.0 to 7.5 A, 600 V
* Contact Plating: Gold Over Nickel
* Mechanical Specifications: Minimum of 300 Mate/Unmate Cycles, Overriding Locking Feature on Coupling Ring to Prevent Vibration or Loosening, and an All Series Hex Nut to Withstand 1-12 inch/lb. Tightening Torque
* Environmental Specifications: Temperature: -55°C to +125°C -67°F to +257°F, Corrosion: 300 Hour Salt Spray Contacts

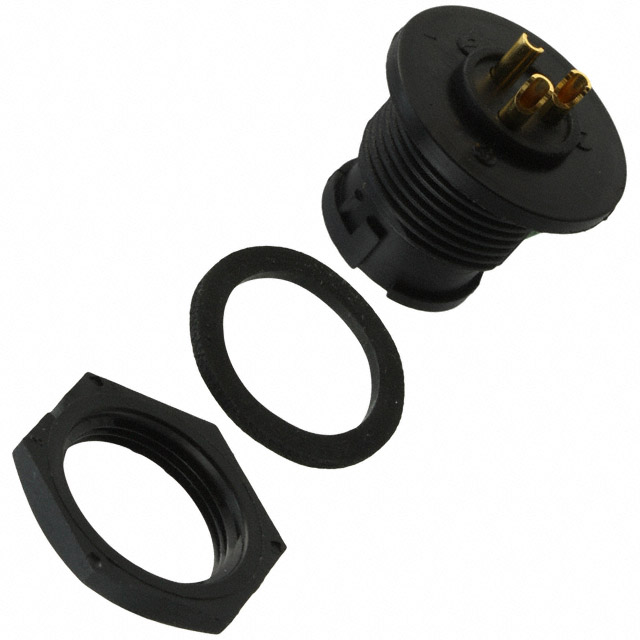

* With Hex Nut and Gasket
触点数 3
极性 Male
触点电镀 Gold over Nickel, Gold
额定电压DC 600 V
工作电压 600 V
额定电流 7.5 A
针脚数 3
拔插次数 300
额定电流Max 7.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 600 V
额定电压 600 V
安装方式 Panel, Solder
引脚数 3
长度 17.1 mm
高度 23.5 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 115℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
