7-534998-0

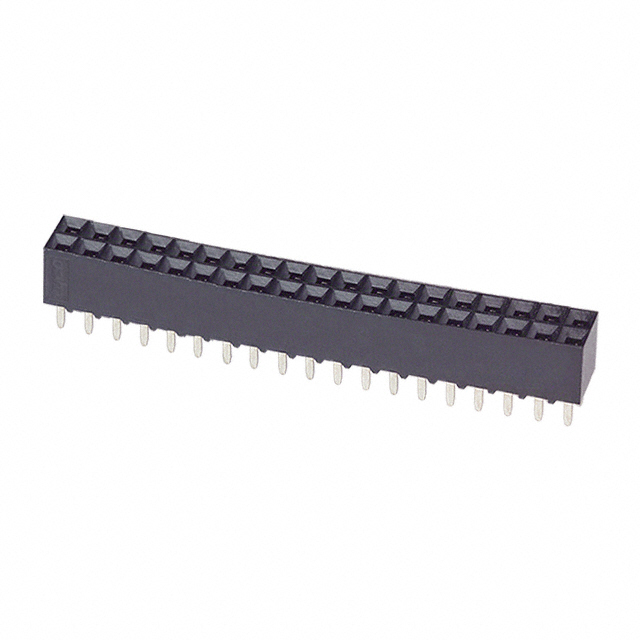

TE CONNECTIVITY  7-534998-0  绝缘压穿 IDC 连接器

40 位置 插座 通孔

得捷:
CONN RCPT 40POS 0.1 GOLD PCB

贸泽:
集管和线壳 REC 2X20P VRT T/H

e络盟:
绝缘压穿 IDC 连接器

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s socket strip 7-534998-0 header connector helps protect your equipment from accidental shortages. This RCP connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 7-534998-0 is housed in black polychlorinated terphenyl. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. This product is 50.8 mm long, 6.73 mm tall and 5.03 mm deep.

Allied Electronics:
AMPMODU Mod IV Series 2.54mm Pitch 40 Way 2 Row Female Straight PCB Conn Housing

安富利:
Conn Socket Strip RCP 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes

Chip1Stop:
Conn Socket Strip RCP 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes

Verical:
Conn Socket Strip SKT 40 POS 2.54mm Solder ST Top Entry Thru-Hole Box/Tube

Newark:
# TE CONNECTIVITY  7-534998-0  Board-To-Board Connector, 2.54 mm, 40 Contacts, Receptacle, AMPMODU Mod IV Series, Through Hole

MASTER:
RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY, .100X.100CL, VERTICAL MOUNT, AMPMODU

Powell:
.100 inch AMPMODU Receptacles

Online Components:
RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY, .100X.100CL, VERTICAL MOUNT, AMPMODU

Electro Sonic:
40 MODIV VRT DR CE 100/125
