76-9512/4044

ITW SWITCHES  76-9512/4044  防暴开关, 76-95系列, SPDT, 铬色, 焊接, 10 A, 250 V

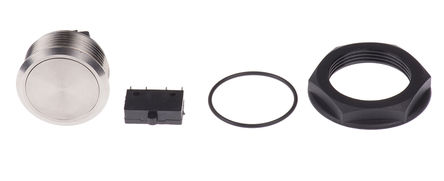

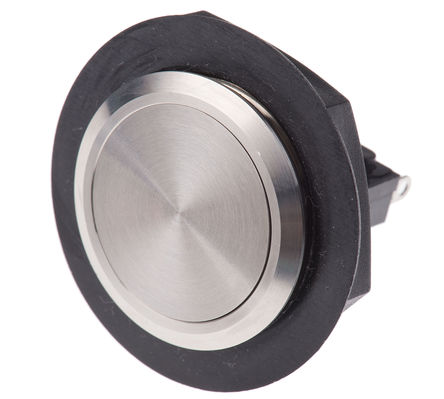

The 76-95 series Vandal-resistant Switch has been designed to withstand impacts of significant force, pushbutton switches are extremely rugged making them particularly suited to applications in which vandal resistance is a necessity. The switch body and buttons are machined from hard-wearing stainless steel and come in front and rear mounting styles. The front mounting versions have a low profile bezel that protrudes a maximum of 2.5mm from the front panel, including sealing washer, while the rear mounting version is capable of providing a flush interface when viewed from the front. Both switches make it very difficult for a vandal to get an object behind in order to lever the switch from its mounting. All provide momentary action and are based on our proven series 16 snap action micro-switch. Connections are made via the solder terminals at the rear of the switch.

.

Vandal-resistant

.

IP67 Protection rating

.

Form Z contacts to cover all switching requirements

.

Attractively machined from stainless steel

.

-30 to +105°C Wide temperature

.

Micro-switch action

.

Rear mounting version can be mounted to appear totally flush

.

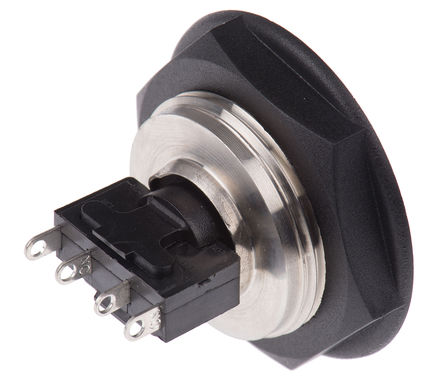

Solder terminals
