70AAJ-4-F0

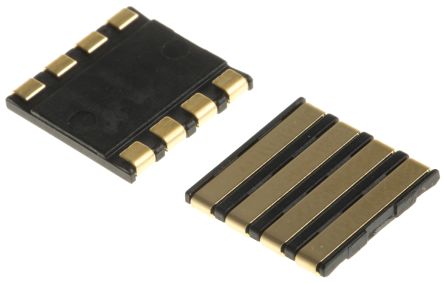

BOURNS  70AAJ-4-F0  模制电池触芯

70AA 系列

70AA 模块化触点是现成的互连设备，可用于移动电话、PDA、笔记本电脑、便携式医疗和测试设备，以及需要使用可充电电池组的任何地方。 它们可以用作压缩或滑动模块化触点，因此可以在其它许多与电池无关的应用环境下发挥连接器功能。

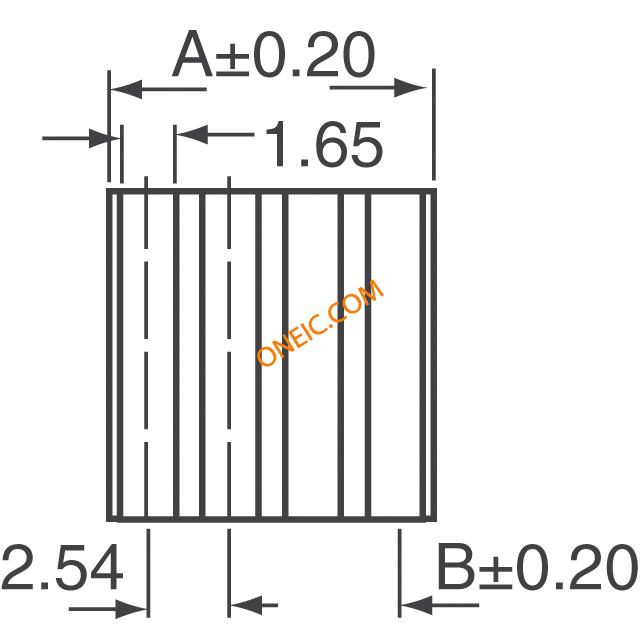

2.54mm 节距和高度

4 个触点

端对端层叠

双热触点

高循环次数

技术参数

---

额定电流 | 每触点 3A

额定电压 | 60V

触点电阻 | <30mΩ

电介质电压 | 500V 交流

绝缘电阻 | 1000MΩ

工作温度 | -55°C 至 +125°C

耐久性 | 至少 10000 次接合

得捷:
CONN SPRING MOD FEMALE 4POS SMD

欧时:
Bourns 4 路 母 模块化触点 70AAJ-4-F0, 3A, 60 V, SMT焊接

贸泽:
电池触点 2.54mm 4Pin Female Standard Pins

e络盟:
模制电池触芯

艾睿:
The best way to get minimal losses of power in your circuit is by operating it with the modular contact 70AAJ-4-F0 power connector from Bourns. This F connector&s;s 4 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 60 V. Its pitch is 2.54 mm. It has a straight body orientation. It has a female type gender. This connector has a single port. 70AAJ-4-F0 is housed in thermoplastic. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has an operating temperature range of -55 °C to 125 °C. This product is 10.06 mm long, 1.27 mm tall and 10 mm deep. Its 4 terminals use the solder termination method.

Allied Electronics:
Female 4 Way Modular Contact; Surface Mount; 3A; 60 V

Chip1Stop:
Conn Modular Contact F 4 POS 2.54mm Solder ST SMD 4 Terminal 1 Port Tube

Verical:
Conn Modular Contact F 4 POS 2.54mm Solder ST SMD 4 Terminal 1 Port Tube

Newark:
# BOURNS  70AAJ-4-F0  Battery Contact, Copper Alloy, 60 V, 4 Contact, Socket, SMD, 70AAJ Series

MASTER:
Conn Modular Contact F 4 POS 2.54mm Solder ST SMD 4 Terminal 1 Port Tube

Online Components:
Conn Modular Contact F 4 POS 2.54mm Solder ST SMD 4 Terminal 1 Port Tube

Electro Sonic:
Conn Modular Contact F 4 POS 2.54mm Solder ST SMD 4 Terminal 1 Port Tube
