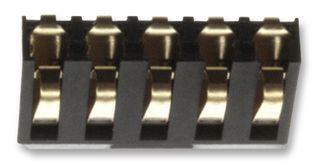

70AAJ-5-M0

BOURNS  70AAJ-5-M0  电池座

Conn Modular Contact M 5 POS 2.54mm Solder ST SMD 5 Terminal 1 Port Tube

得捷:
CONN SPRING MOD MALE 5POS SMD

贸泽:
电池触点 2.54mm 5Pin Male Standard Pins

e络盟:
电池触芯, 模制, 铜合金, 60V, 5金属触芯, 公触芯, SMD, 70AAJ 系列

艾睿:

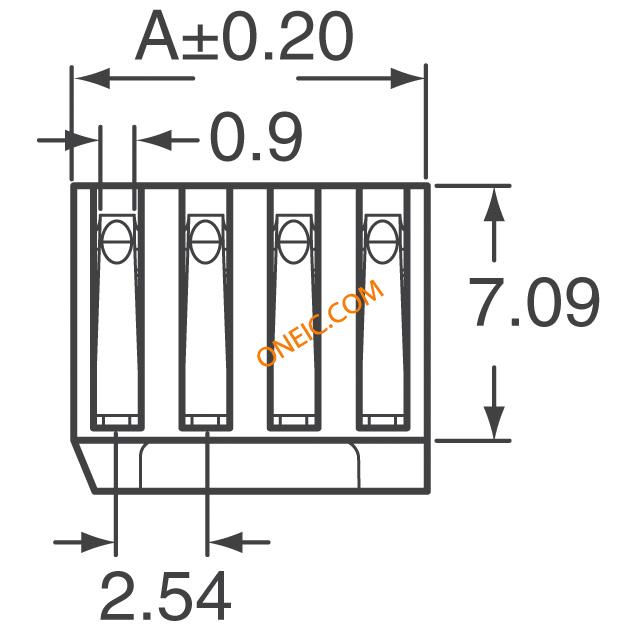

Use this modular contact 70AAJ-5-M0 power connector from Bourns to connect a power supply to a circuit. This M connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 60 V. It has a straight body orientation. Its pitch is 2.54 mm. This connector has a single port. It has a male type gender. This device has a maximum current rating of 3 A. 70AAJ-5-M0 is housed in thermoplastic. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 5 terminals use the solder termination method. This product is 12.62 mm long, 3.81 mm tall and 8.48 mm deep. This power connector has an operating temperature range of -55 °C to 125 °C.

Chip1Stop:
Conn Modular Contact M 5 POS 2.54mm Solder ST SMD 5 Terminal 1 Port Tube

Verical:
Conn Modular Contact M 5 POS 2.54mm Solder ST SMD 5 Terminal 1 Port Tube

Newark:
# BOURNS  70AAJ-5-M0  Battery Contact, Modular, Copper Alloy, 60V, 5 Contact, Pin, SMD, 70AAJ Series

MASTER:
Conn Modular Contact M 5 POS 2.54mm Solder ST SMD 5 Terminal 1 Port Tube

Online Components:
Conn Modular Contact M 5 POS 2.54mm Solder ST SMD 5 Terminal 1 Port Tube

Electro Sonic:
Conn Modular Contact M 5 POS 2.54mm Solder ST SMD 5 Terminal 1 Port Tube
