MOLEX 73366-0061 射频/同轴连接器, MCX同轴, 直型插座, 通孔安装 垂直, 50 ohm, 铍铜

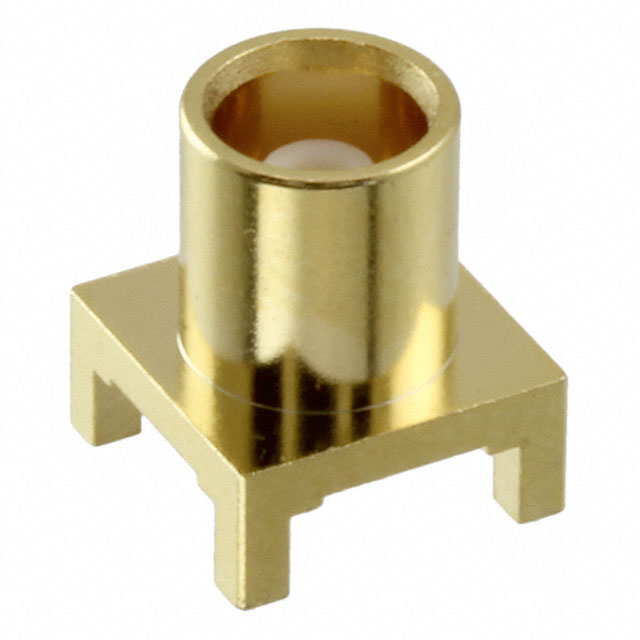

The is a vertical MCX Jack Receptacle with brass body, gold-plated beryllium copper contacts and PCB mounting. This 73366 series jack has Teflon insulation and through hole vertical termination. The MCX RF connector is designed for use in any wire-to-board application where quick and easy snap-on mating is needed. MCX subminiature snap-on connector offers a stable and durable connection. The subminiature design allows other electronic assemblies to be densely packaged on the PCB. MCX connector is approximately 30% smaller than SMB connectors are.
- .
- Snap-on coupling - Reduces instillation time
极性 Male
触点电镀 Gold
无卤素状态 Low Halogen
方向 Straight
安装方式 Through Hole
长度 6 mm
宽度 6 mm
高度 5.5 mm
触点材质 Beryllium Copper
产品生命周期 Active
包装方式 Tray
制造应用 Consumer Electronics, Industrial, Automotive, Medical, 国防, 军用与航空, Wireless, 通信与网络, 消费电子产品, Communications & Networking, 工业, 车用, 医用, Aerospace, Defence, Military, 无线
RoHS标准 Non-Compliant
含铅标准 Lead Free
军工级 Yes
