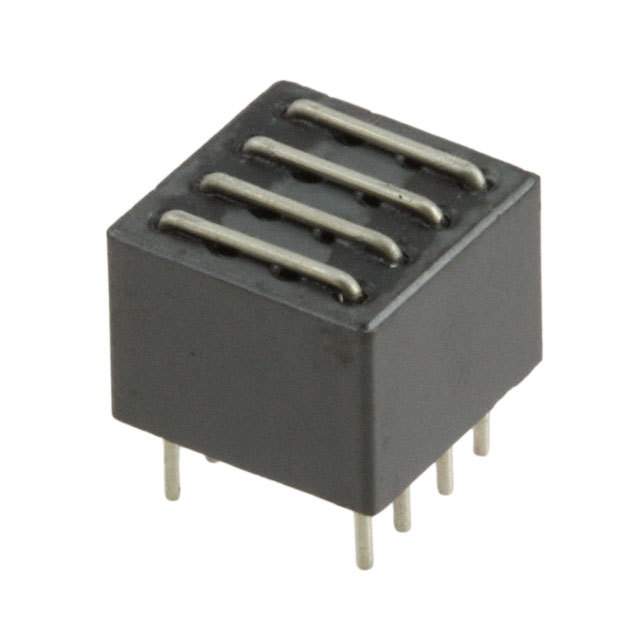

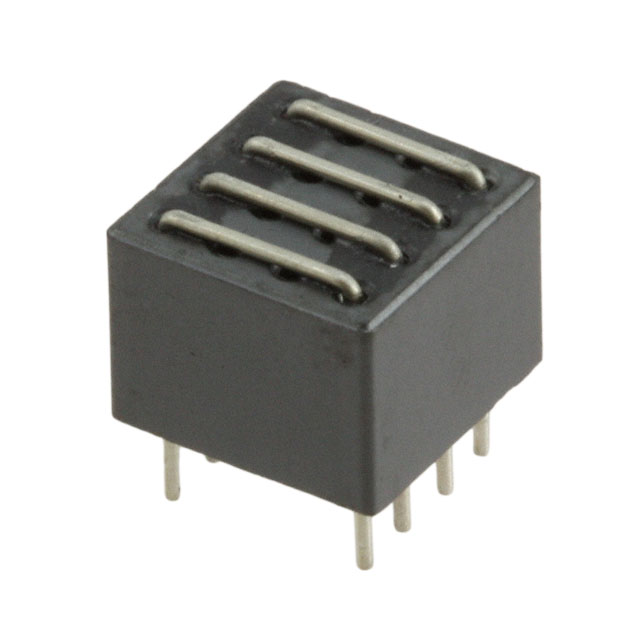

WURTH ELEKTRONIK 742730022 铁氧体抑制器, 4线
The is a 4-way multiline EMI suppression Ferrite Bead offers high impedance common-mode inductor with 2x2 windings made by PCB line connection. With the appropriate layout the impedance i.e. 4 windings respectively the current parallel circuit could be increased. The WE-MLS series ferrite bead is suitable for absorption of common or differential mode interferences in the field of EMC. It is also ideal for high-current DC output filters of power supplies battery chargers, industrial power supplies, multi-conductor systems and power electronics, filtering components of low voltage power supplies and 4-line sensor applications.
- .
- Broadband filtering because of the NiZn-ferrite core
- .
- Compact size
- .
- 4A High rated current
- .
- -25 to 125°C Operating temperature range
Cleaning agents that are used to clean the customer application might damage or change the characteristics of the component, body, pins or termination.
