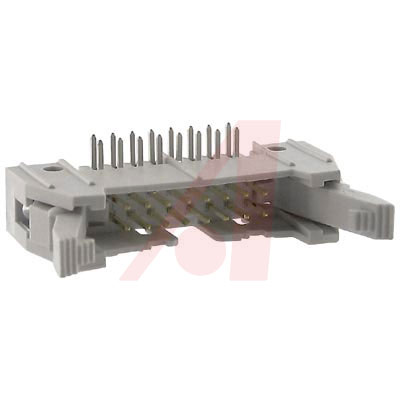

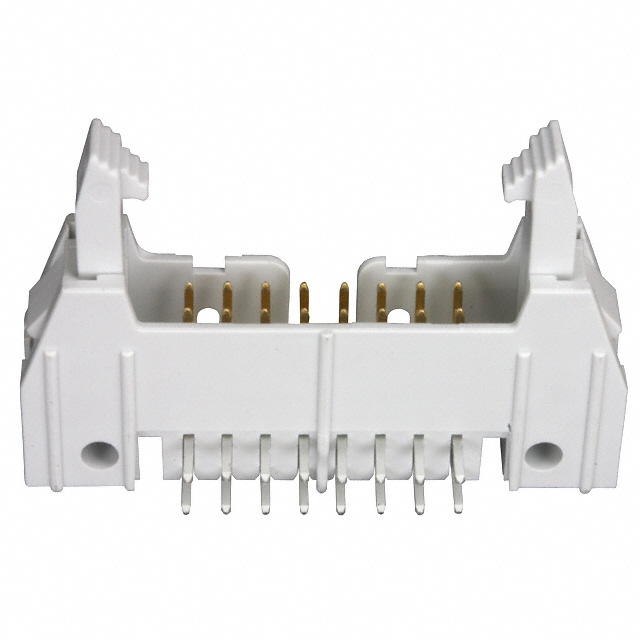

AMPHENOL FCI 71922-116LF 线至板连接器, 直角, Quickie系列, 16 触点, 针座, 2.54 mm, 通孔安装, 2 排
**Double Row Through Hole Header, Straight with Latches**
This range of 2.54 mm pitch Quickie Ejector Latch Shrouded Header Pins have PdNi with Gold Flash on contact area and Matte Tin on the 2.9 mm long PCB Tails. These 2.54 mm pitch Quickie Shrouded Pin Headers have standard Ejector Latches with an above board height of 26.8 mm maximum. The 5+5 way Quickie Ejector Latch Shrouded Header has right polarization only. The 10+10 way Quickie Ejector Latch Shrouded Header has right and left polarization.
触点数 16
极性 Male
触点电镀 Gold
额定电流 3 A
绝缘电阻 100 GΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 16
拔插次数 250
安装角度 90.0 °
额定电流Max 3A/触头
额定电压 1500 VAC
安装方式 Through Hole
引脚间距 2.54 mm
长度 39.62 mm
宽度 26.8 mm
高度 8.6 mm
引脚间距 2.54 mm
外壳颜色 Gray
颜色 Gray
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Computers & Computer Peripherals, Test & Measurement, Industrial, Automotive, Medical, Multimedia, -, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
