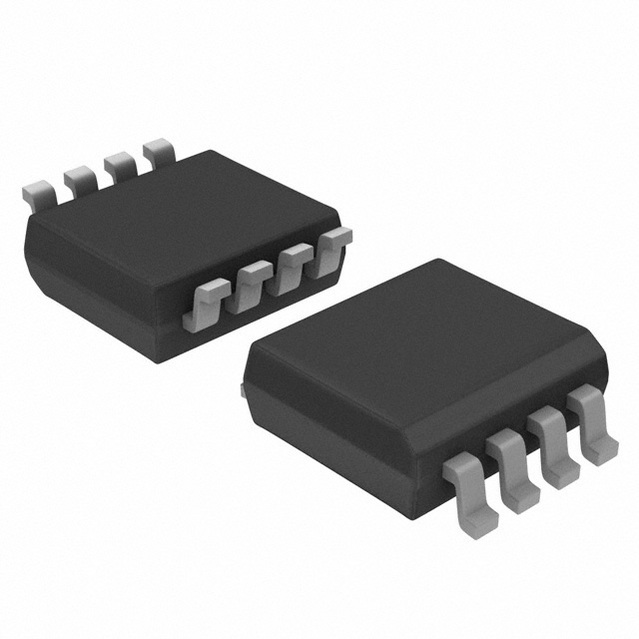

NXP 74LVC2G66DC,125 模拟开关, 双通道, SPST - 常开, 2 放大器, 195 ohm, 1.65V 至 5.5V, VSSOP, 8 引脚
The is a single-pole single-throw SPST bilateral Analog Switch has two input/output terminals nY and nZ and an active HIGH enable input nE. When nE is LOW, the analog switch is turned off. Schmitt trigger action at the enable inputs makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 to 5.5V.
- .
- Very low ON resistance
- .
- ESD Protection
- .
- High noise immunity
- .
- CMOS low power consumption
- .
- TTL interface compatibility at 3.3V
输出接口数 2
供电电流 200 µA
电路数 2
通道数 2
针脚数 8
耗散功率 0.25 W
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 500 MHz
耗散功率Max 250 mW
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
