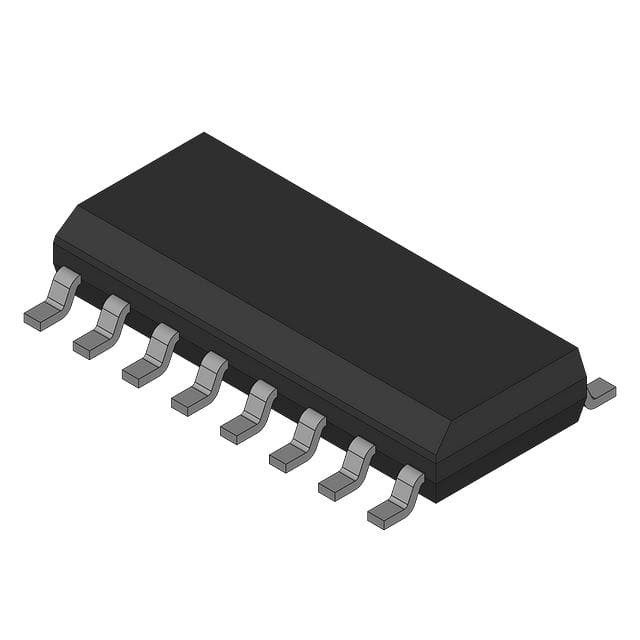

74HCT40105D,112图片1

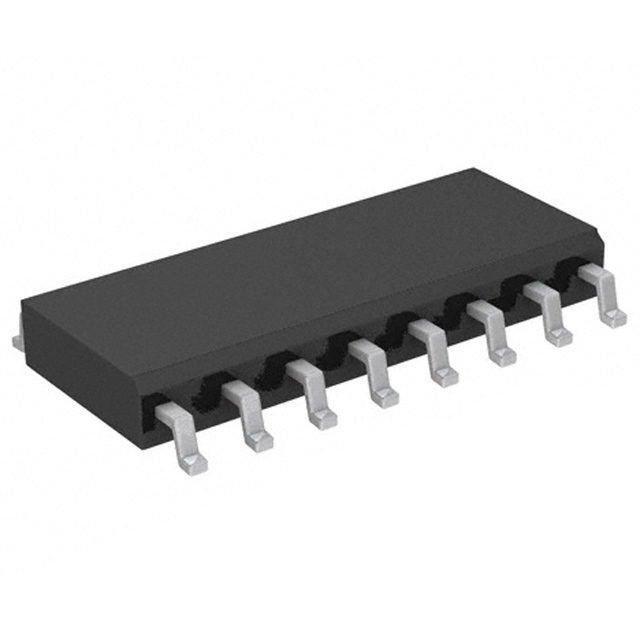

74HCT40105D,112图片2

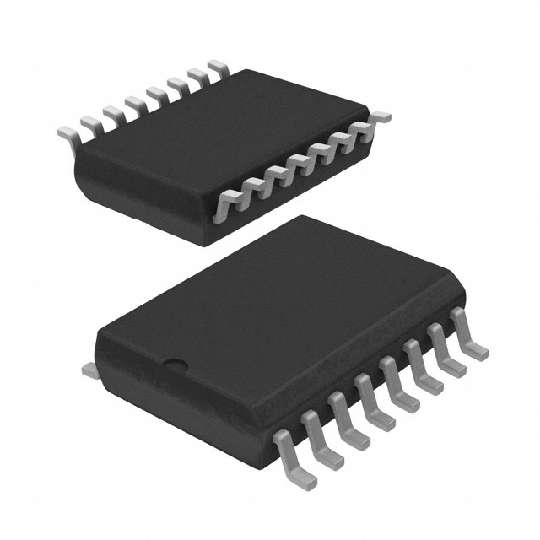

74HCT40105D,112图片3
74HCT40105D,112图片4
74HCT40105D,112图片5
74HCT40105D,112图片6
74HCT40105D,112图片7
74HCT40105D,112图片8
74HCT40105D,112图片9
74HCT40105D,112图片10
74HCT40105D,112概述

NXP  74HCT40105D,112  芯片, FIFO寄存器, 4位, 31MHZ, SOIC-16

The 74HCT40105D is a 4-bit x 16-word Register that can store sixteen 4-bit words. It can handle input and output data at different shifting rates. This feature makes it particularly useful as a buffer between asynchronous systems. Each word position in the register is clocked by a control flip-flop, which stores a marker bit. A logic 1 signifies that the data at that position is filled and a logic 0 denotes a vacancy in that position. The control flip-flop detects the state of the preceding flip-flop and communicates its own status to the succeeding flip-flop. When a control flip-flop is in the logic 0 state and sees a logic 1 in the preceding flip-flop, it generates a clock pulse. The clock pulse transfers data from the preceding four data latches into its own four data latches and resets the preceding flip-flop to logic 0. The first and last control flip-flops have buffered outputs.

.
Independent asynchronous inputs and outputs
.
Expandable in either direction
.
Reset capability
.
Status indicators on inputs and outputs
.
TTL Input level
.
Complies with JEDEC standard No. 7A
74HCT40105D,112中文资料参数规格
技术参数

频率 31 MHz

电源电压DC 4.50V min

电路数 1

通道数 4

针脚数 16

存取时间 40 ns

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 SOIC-16

外形尺寸

宽度 4 mm

封装 SOIC-16

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 Industrial, Consumer Electronics, Computers & Computer Peripherals

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17
