796949-2

TE CONNECTIVITY / BUCHANAN  796949-2  端子排

* Connector

* Type of Connector = Wire Receptacle

* Housing Color = Green

* Not Side Stackable

* Without Screw Flange

得捷:
TERM BLK 2P SIDE ENT 5.08MM PCB

贸泽:
Fixed Terminal Blocks 5.08MM VERTICAL 2P wire protector

e络盟:
端子排

艾睿:

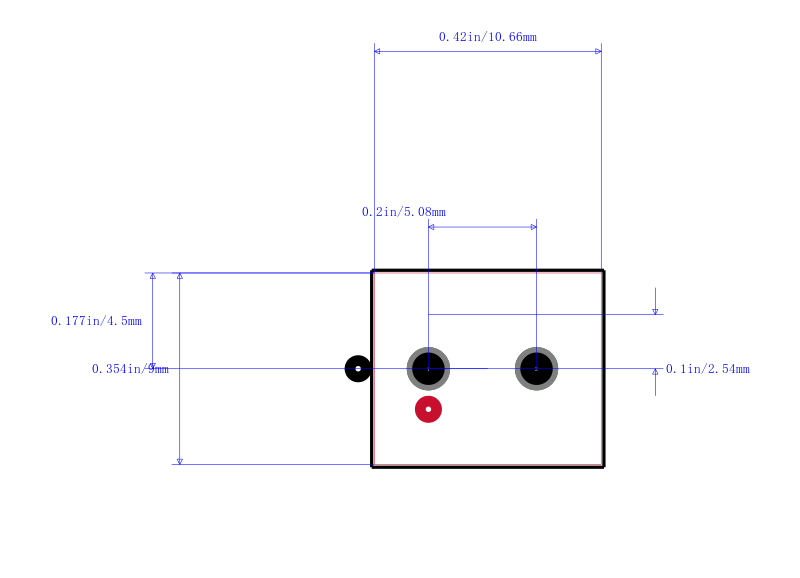

This eurostyle block 796949-2 PCB terminal block developed by TE Connectivity will mend different gage wires together. Its pitch is 5.08 mm. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. 796949-2 is housed in polyamide 6/6. This device has a maximum current rating of 17.5 A/contact. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 10.66 mm long, 15.2 mm tall and 9 mm deep. It uses the solder termination method. Its wire is 12-30 AWG.

Allied Electronics:
Buchanan; Conn; Term Blk; PCB; 2; 5.08 mm; Front; 30-12 AWG; Black; 17.5 A; 300 V

Jameco:
Connector Terminal Blocks 2 Position 5.08mm Solder Straight Thru-Hole 17.5A/Contact

安富利:
Conn Terminal Block 2 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact

Chip1Stop:
Conn Terminal Block 2 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact

Verical:
Conn Eurostyle Block HDR 2 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact Box

MASTER:
TERMINAL BLOCK PCB MOUNT W/INTERLOCK, 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMINAL BLOCK PCB MOUNT W/INTERLOCK, 5.08mm PITCH

Electro Sonic:
TERMI-BLOK PCB MOUNT 2P. 5
