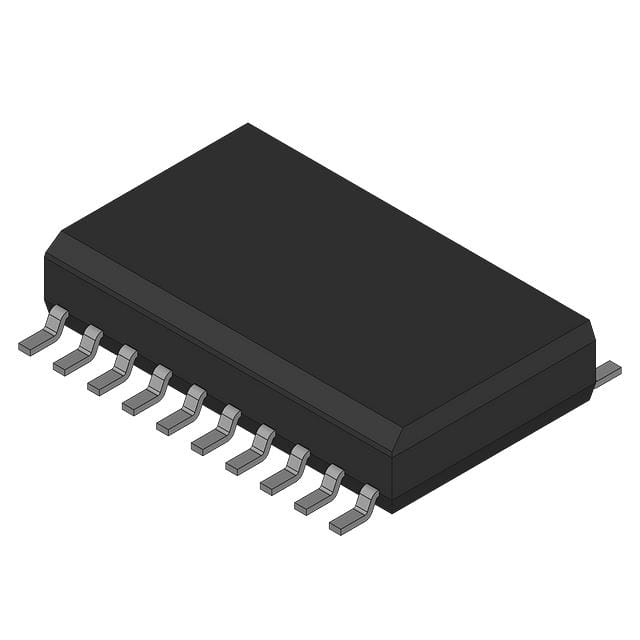

NXP 74AHCT273D,118 触发器, 非反相, 正沿, D, 75 MHz, 25 mA, SOIC, 20 引脚
Are you looking to store information at a basic level? The flip flop device from Semiconductors can easily save state information. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 75 MHz
电源电压DC 4.50V min
输出电流 25 mA
针脚数 20
时钟频率 75 MHz
位数 8
输入电容 3 pF
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
高度 2.45 mm
封装 SOIC-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
