770149-1

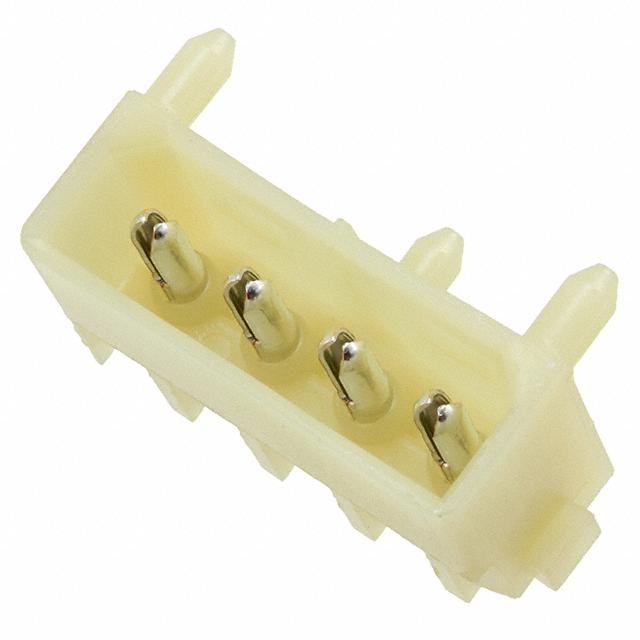

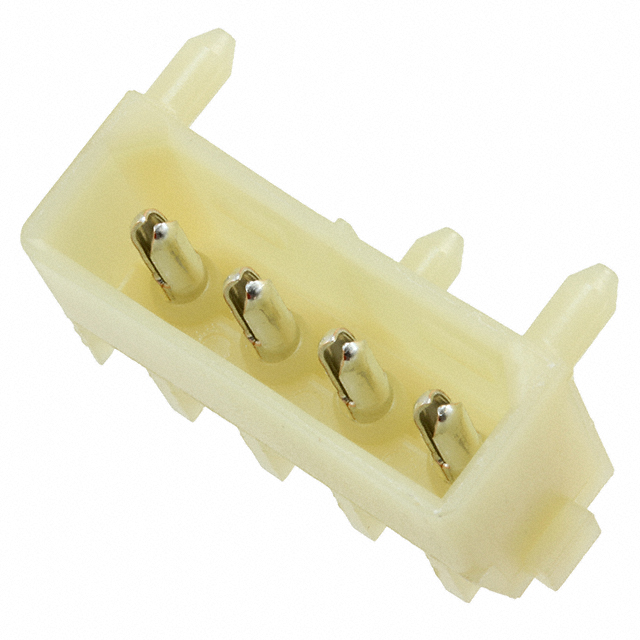

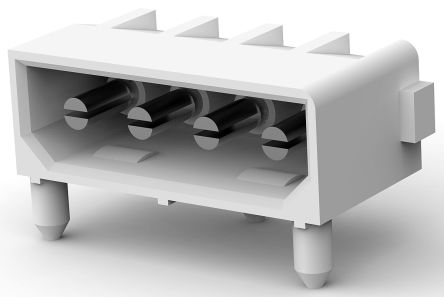

TE CONNECTIVITY  770149-1  线至板连接器, Commercial MATE-N-LOK系列, 4 触点, 针座, 5.08 mm, 表面安装　, 1 排

磁盘驱动 90 ° 表面安装插头

4 路直角，适用于通用输入/输出电源连接

连接设备内的磁盘驱动器

额定电压 250V 交流/直流。105 ° C 时最大电流为 12A。

建议印刷电路板厚度为 1.6mm

### 磁盘驱动连接器

得捷:
CONN HEADER SMD R/A 4POS 5.08MM

欧时:
TE Connectivity 磁盘驱动连接器 公 插座 770149-1, 表面安装安装, 13A 250 V 交流

贸泽:
Pin & Socket Connectors RA PIN HDR ASSY 4P

e络盟:
线至板连接器, 5.08 mm, 4 触点, 针座, Commercial MATE-N-LOK系列, 表面安装　, 1 排

艾睿:
As an added safety precaution, the wire to board 770149-1 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with pre-tin. It has a maximum voltage rating of 250 VAC. Its pitch is 5.08 mm. It has a header type gender. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 13 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 25.4 mm long, 12.3 mm tall and 8.76 mm deep. 770149-1 is housed in natural nylon.

Allied Electronics:
Disk Drive Connector Surface Mount Socket, Solder Termination, 13A, 250 V ac

安富利:
Conn Wire to Board HDR 4 POS 5.08mm Solder RA SMD

Chip1Stop:
Conn Wire to Board HDR 4 POS 5.08mm Solder RA SMD

Verical:
Conn Wire to Board HDR 4 POS 5.08mm Solder RA SMD

Newark:
# TE CONNECTIVITY  770149-1  Wire-To-Board Connector, Commercial MATE-N-LOK Series, Surface Mount, Header, 4, 5.08 mm

MASTER:
PIN HEADER ASSEMBLY, RIGHT ANGLE MOUNT, 4 CKT, COMMERCIAL MATE-N-LOK

Powell:
.200" Centerline, 250 V, 13 A max.

Online Components:
PIN HEADER ASSEMBLY, RIGHT ANGLE MOUNT, 4 CKT, COMMERCIAL MATE-N-LOK

Electro Sonic:
04P CMNL PIN HDR ASSY R/A
