74HC4017D

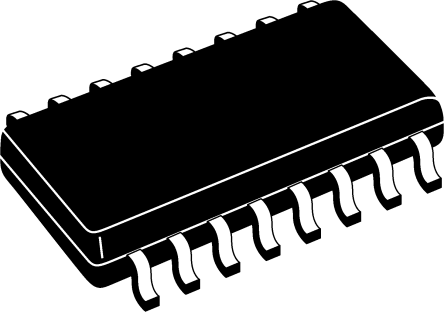

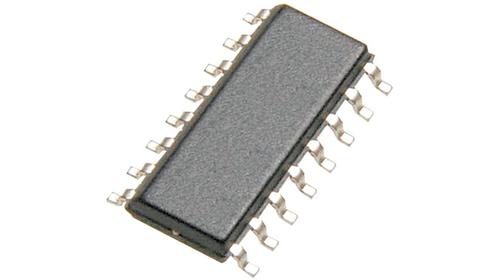

NXP  74HC4017D  芯片, 逻辑电路 - 74HC, 计数器, SO16

The is a 5-stage Johnson Decade Counter with 10 decoded outputs Q0 to Q9, an output from the most significant flip-flop Q5\\-9, two clock inputs CP0 and CP1\\ and an overriding asynchronous master reset input MR. The counter is advanced by either a low-to-high transition at CP0 while CP1\ is low or a high-to-low transition at CP1\ while CP0 is high. When cascading counters, the Q5\\-9 output, which is low while the counter is in states 5, 6, 7, 8 and 9, can be used to drive the CP0 input of the next counter. A high on MR resets the counter to zero Q0 = Q5\\-9 = high, Q1 to Q9 = low independent of the clock inputs CP0 and CP1\\. Automatic code correction of the counter is provided by an internal circuit: following any illegal code the counter returns to a proper counting mode within 11 clock pulses. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

.

CMOS Input level

.

Complies with JEDEC standard No. 7A
