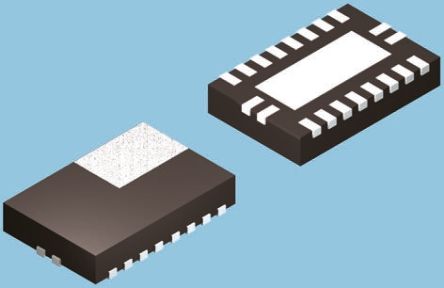

74HC595BQ

NXP  74HC595BQ  移位寄存器, HC系列, 串行至并行、串行至串行, 1元件, DHVQFN, 16 引脚, 2 V, 6 V

The is a 8-bit serial-in/serial or parallel-out Shift Register with a storage register and 3-state outputs. Both the shift and storage register have separate clocks. The device features a serial input DS and a serial output Q7S to enable cascading and an asynchronous reset MR\ input. A low on MR\ will reset the shift register. Data is shifted on the low-to-high transitions of the SHCP input. The data in the shift register is transferred to the storage register on a low-to-high transition of the STCP input. If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register. Data in the storage register appears at the output whenever the OE\ is low. A high on OE\ causes the outputs to assume a high-impedance OFF-state. Operation of the OE\ input does not affect the state of the registers. Inputs include clamp diodes.

.

Shift register with direct clear

.

100MHz Typical shift out frequency

.

CMOS Input level

.

Complies with JEDEC standard No. 7A
