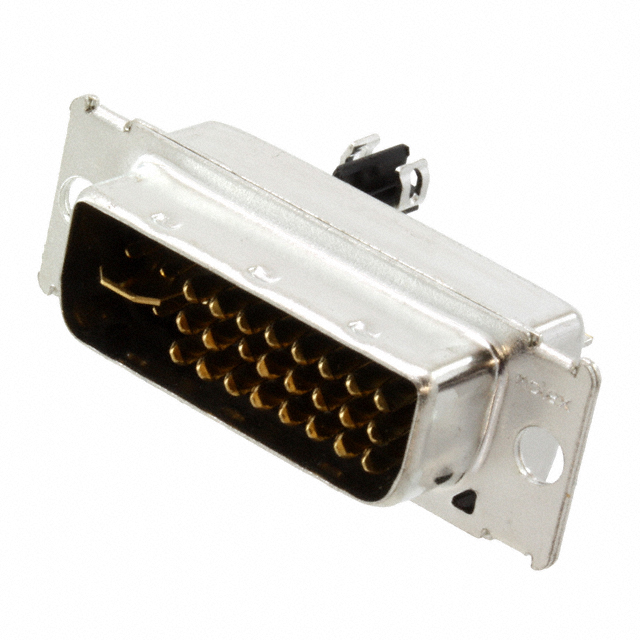

MOLEX 74323-2033 DVI数字视频接口连接器, 模拟和数字集成 DVI-I, 插头, 29 触点, 电缆安装, 金属主体, 镀金触芯
The is a 29-contact MicroCross™ DVI Digital/Analogue Dual Link Component Plug connects a host device to a monitor for supporting high-resolution video applications. Supporting one or two digital links driven by TMDS transition minimized differential signalling and/or a high bandwidth analogue interface, MicroCross DVI provides a single high-performance interface, saving board space. It mates with the 74320 and 67351 DVI receptacles.
GTIN UPC EAN: 800753025868
- .
- Excellent EMI/RFI performance
触点数 29
极性 Male
触点电镀 Gold
额定电流 3.00 A
排数 3
无卤素状态 Not Low Halogen
方向 Vertical
电路数 29
针脚数 29
额定电流Max 3A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 40 VAC
安装方式 Through Hole
封装 Metal
引脚间距 2.54 mm
长度 36.83 mm
宽度 20.45 mm
高度 12.45 mm
封装 Metal
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Tray
制造应用 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
