Buffer/Line Driver 8CH Non-Inverting 3-ST CMOS 20Pin DHVQFN EP T/R
The is an octal non-inverting Buffer/Line Driver with 3-state bus compatible outputs. It is a high-speed Si-gate CMOS device. The 3-state outputs are controlled by the output enable inputs OE0 and OE1. A HIGH on OEn causes the outputs to assume a high-impedance OFF-state.
电源电压DC 4.50V min
针脚数 20
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

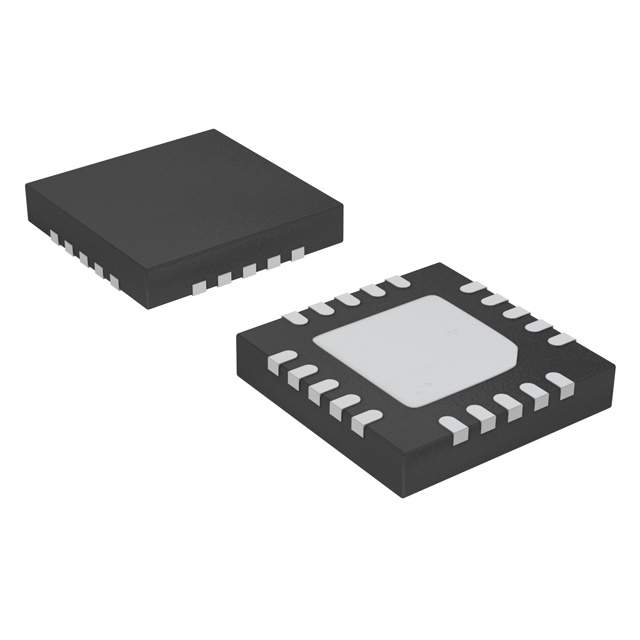

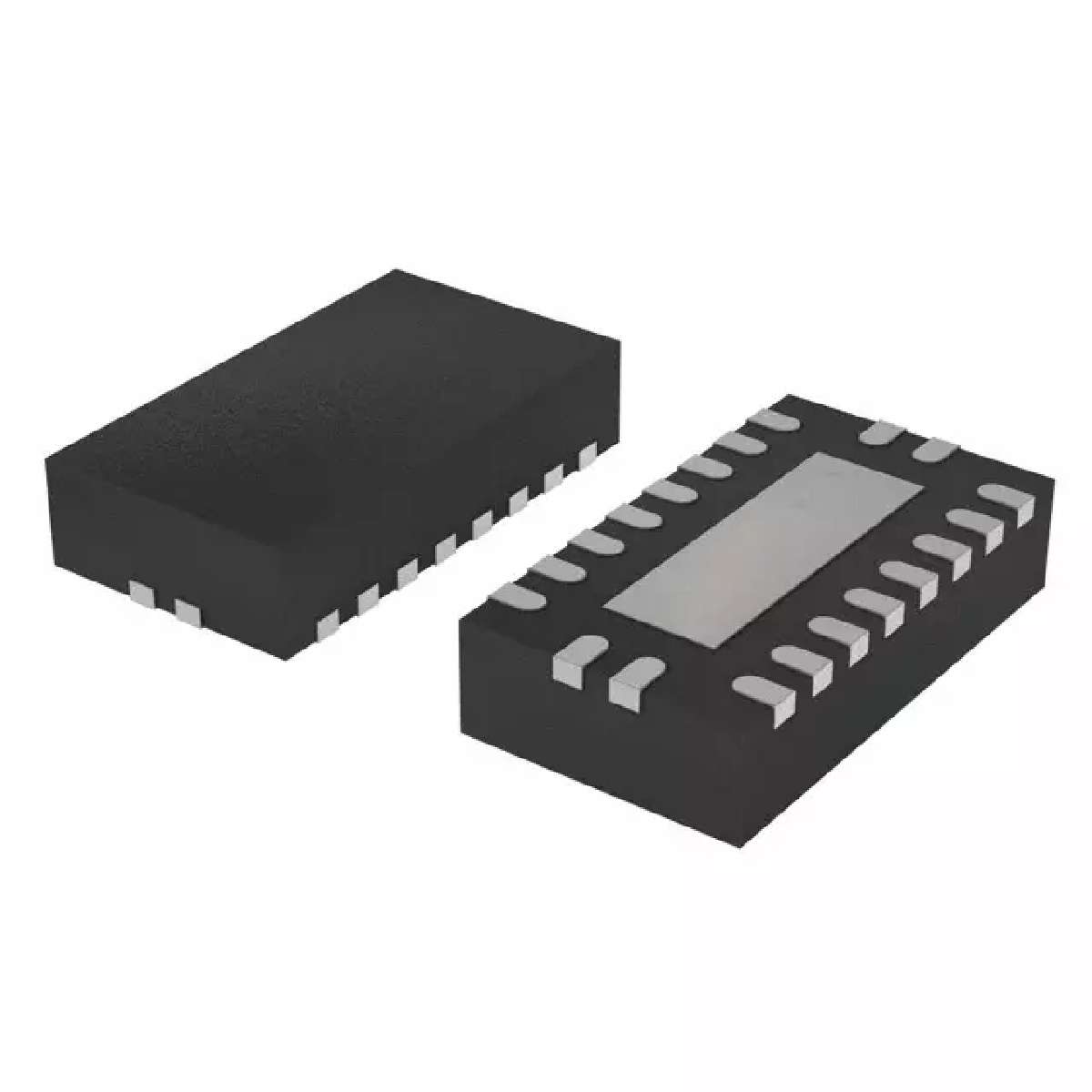

封装 DHVQFN-20
高度 0.95 mm
封装 DHVQFN-20
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Automotive, Signal Processing, Industrial, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
