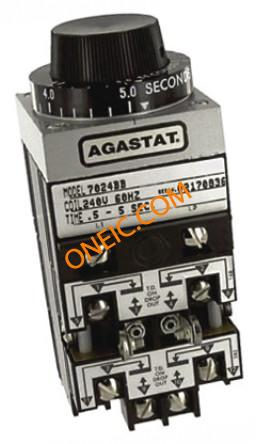

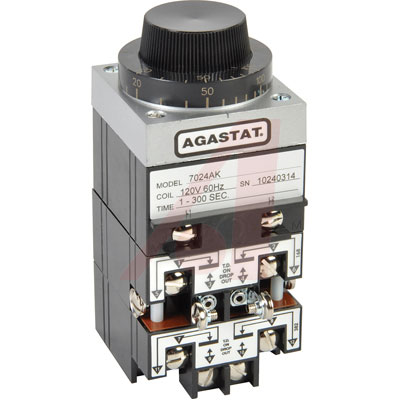

Electromechanical Relay 4PDT 10A 110/120VAC Panel Mount
**Features:**
* Available in On- and Off-Delay
* Timing from 0.1 Seconds to 60 Minutes, Fully Calibrated in Linear Increments
* Oversized Time-Calibrated Adjustment Knobs, Markings Visible from All Angles Make This the Most Practical, Easily-Set Timer Available
* Inherent Transient Immunity
* Operating Voltages Range from 6 to 550 VAC and 12 to 550 VDC with Special Voltages Available
* Available in 2-Pole or 4-Pole Models
* Many Enclosure Options: Explosion Proof, Dust Tight, Water Tight, Hermetically Sealed, NEMA 1
* Auxiliary Timer and Instantaneous Switches Can Be Added for Greater Switching Flexibility
* Numerous Mounting Options: Surface-Mount, Panel-Mount, Octal Plug-In Mounting
* Options and Accessories: Quick-Connect Terminals, Dial Stops and Transient Protections Module
* Front Terminals — Easy-to-Reach Screw Terminals, All on the Face of the Unit, Clearly Identified
* Module Assembly — Timing Head, Coil Assembly and Switch-Block Are Individual Modules
额定电流 15 A
触点类型 4PDT
线圈电压AC 110V, 120V
额定电流Max 10 A
开关电流Max 10 A
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压AC Max 240 V
电源电压 110VAC, 120VAC
安装方式 Panel, Screw
长度 114.8 mm
宽度 65.3 mm
高度 71.9 mm
工作温度 -30℃ ~ 75℃
产品生命周期 Active
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
