矩形电源连接器, 6 触点, Universal MATE-N-LOK Series, 电路板安装, 通孔安装, 6.35 mm, 插头

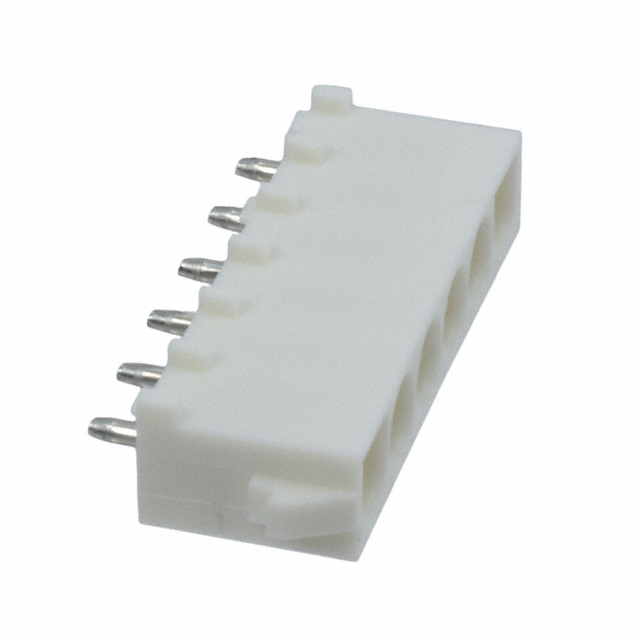

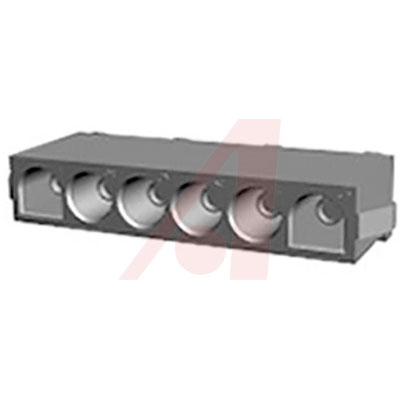

** Universal MATE-N-LOK PCB Vertical Socket Headers**
Universal MATE-N-LOK PCB vertical socket headers with UL94V-0 nylon housings, 6.35mm centerline spacing and phosphor bronze contacts.
得捷:
CONN HDR 6POS 0.25 GOLD PCB
e络盟:
矩形电源连接器, 6 触点, Universal MATE-N-LOK Series, 电路板安装, 通孔安装, 6.35 mm, 插头
艾睿:
Are you looking for a solution to connecting a circuit to a power supply? Then use this 770262-3 power connector from TE Connectivity for a secure connection! This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 600 VAC. It has a socket type gender. Its pitch is 6.35 mm. It has a straight body orientation. This connector has a single port. This device has a maximum current rating of 19 A/contact. 770262-3 is housed in nylon. This product is 14.73 mm tall. Its 6 terminals use the solder termination method.
Allied Electronics:
Universal MATE-N-LOK Series, 6.35mm Pitch 6 Way 1 Row Straight PCB Header
安富利:
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port
Chip1Stop:
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port
Verical:
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Bag/Box
Newark:
# AMP - TE CONNECTIVITY 770262-3 06P UMNL SOK HDR ASSY 94VO LF
MASTER:
SOCKET HEADER ASSEMBLY, 6 CIRCUIT UNIVERSAL MATE-N-LOK
Powell:
.250" Centerline, 600 V, 19 - 36 A max
Online Components:
SOCKET HEADER ASSEMBLY, 6 CIRCUIT UNIVERSAL MATE-N-LOK
Electro Sonic:
06P UMNL SOK HDR ASSY 94VO LF
触点数 6
触点电镀 Gold, Tin
额定电流 19.0 A
排数 1
方向 Vertical
电路数 6
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 19A/触头
额定电压Max 600 VAC
安装方式 Through Hole
高度 14.73 mm
外壳颜色 White
颜色 White
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 -, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
