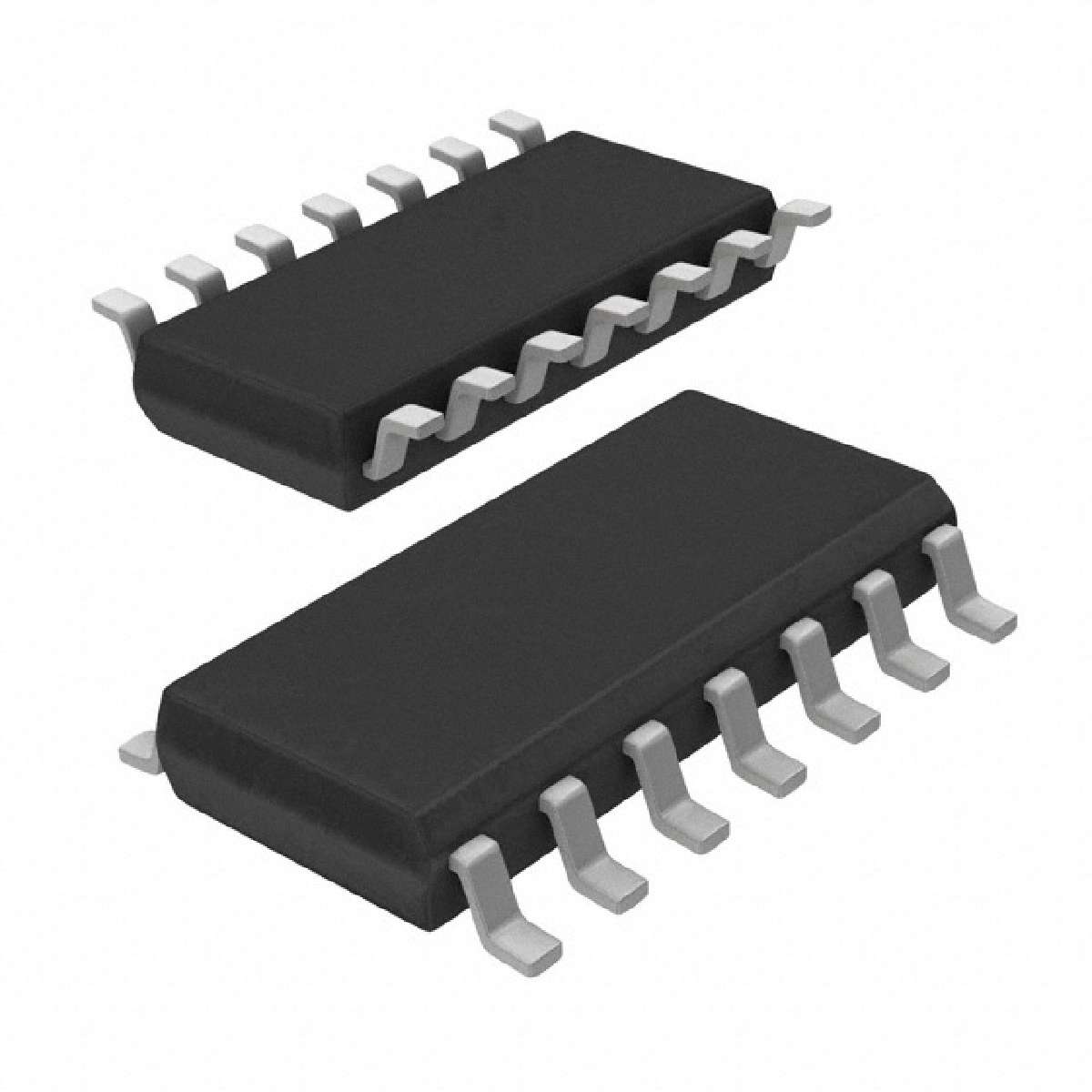

74HCT126 系列 5.5 V 表面贴装 三态 四路 缓冲器/线路驱动器 - SOIC-14
The is a quad Buffer/Line Driver with 3-state outputs controlled by the output enable inputs. A LOW on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
电源电压DC 4.50V min
输出接口数 4
通道数 4
针脚数 14
输入数 4
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14
封装 SOT-108-14
高度 1.45 mm
封装 SOT-108-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automation & Process Control, Industrial, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
