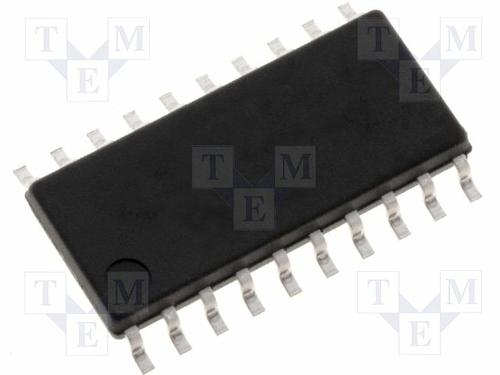

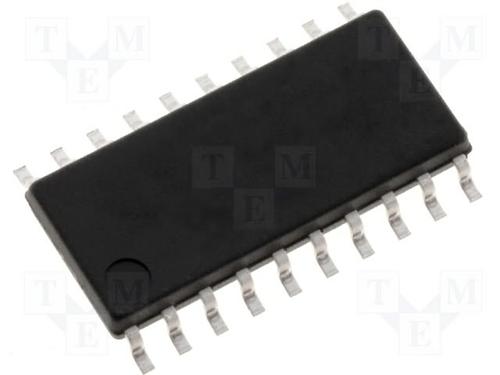

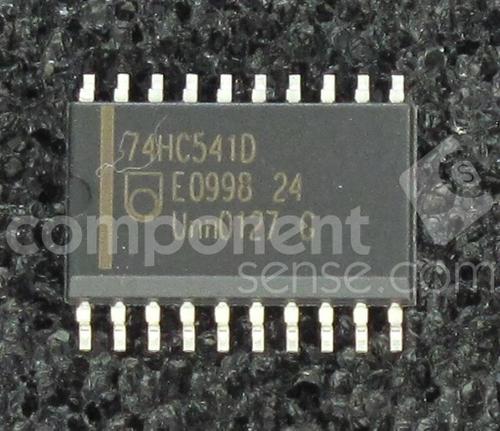

NXP 74HC541D 缓冲器 / 线路驱动器, 非反相, 3态, 8门, 1输入, 2V至6V, SOIC-20
The is an octal non-inverting Buffer/Line Driver with 3-state outputs. The device features two output enables OE1 and OE2. A HIGH on OEn causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
电源电压DC 5.00 V, 6.00 V max
输出接口数 8
通道数 8
针脚数 20
位数 8
逻辑门个数 8
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC
封装 SOIC
产品生命周期 Unknown
包装方式 Each
制造应用 Automotive, Automation & Process Control, Signal Processing, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
