74HC154D,653

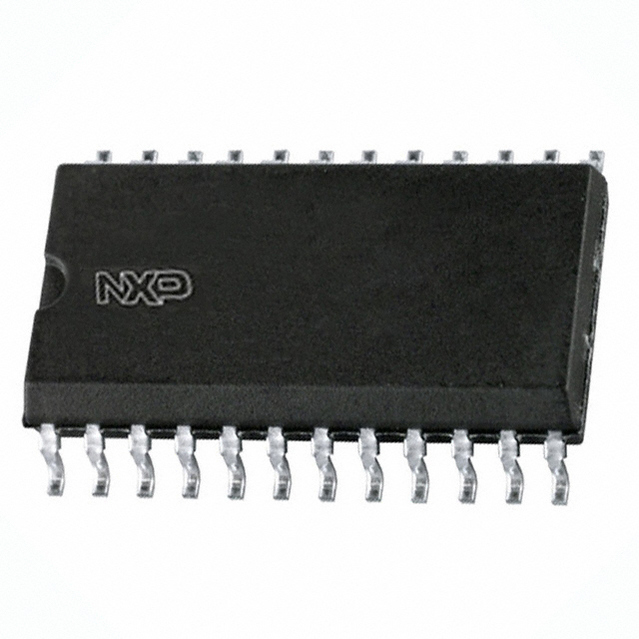

NXP  74HC154D,653  芯片, 解码器/信号分离器, 4:16, SOIC-24

The is a 4-to-16 line Decoder or Demultiplexer is a high-speed Si-gate CMOS device and is pin compatible with low-power Schottky TTL LSTTL . The decoder accepts four active high binary address inputs and provide 16 mutually-exclusive active low outputs. The two-input enable gate can be used to strobe the decoder to eliminate the normal decoding glitches on the outputs or can be used for the expansion of the decoder. The enable gate has two ANDed inputs which must be low to enable the outputs. This can be used as a 1-to-16 demultiplexer by using one of the enable inputs as the multiplexed data input. When the other enable input is low, the addressed output will follow the state of the applied data.

.

16-line demultiplexing capability

.

Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs

.

ESD protection HBM EIA/JESD22-A114D exceeds 2000V

.

Complies with JEDEC standard no-7A

ESD sensitive device, take proper precaution while handling the device.
