74HCT367D,652概述

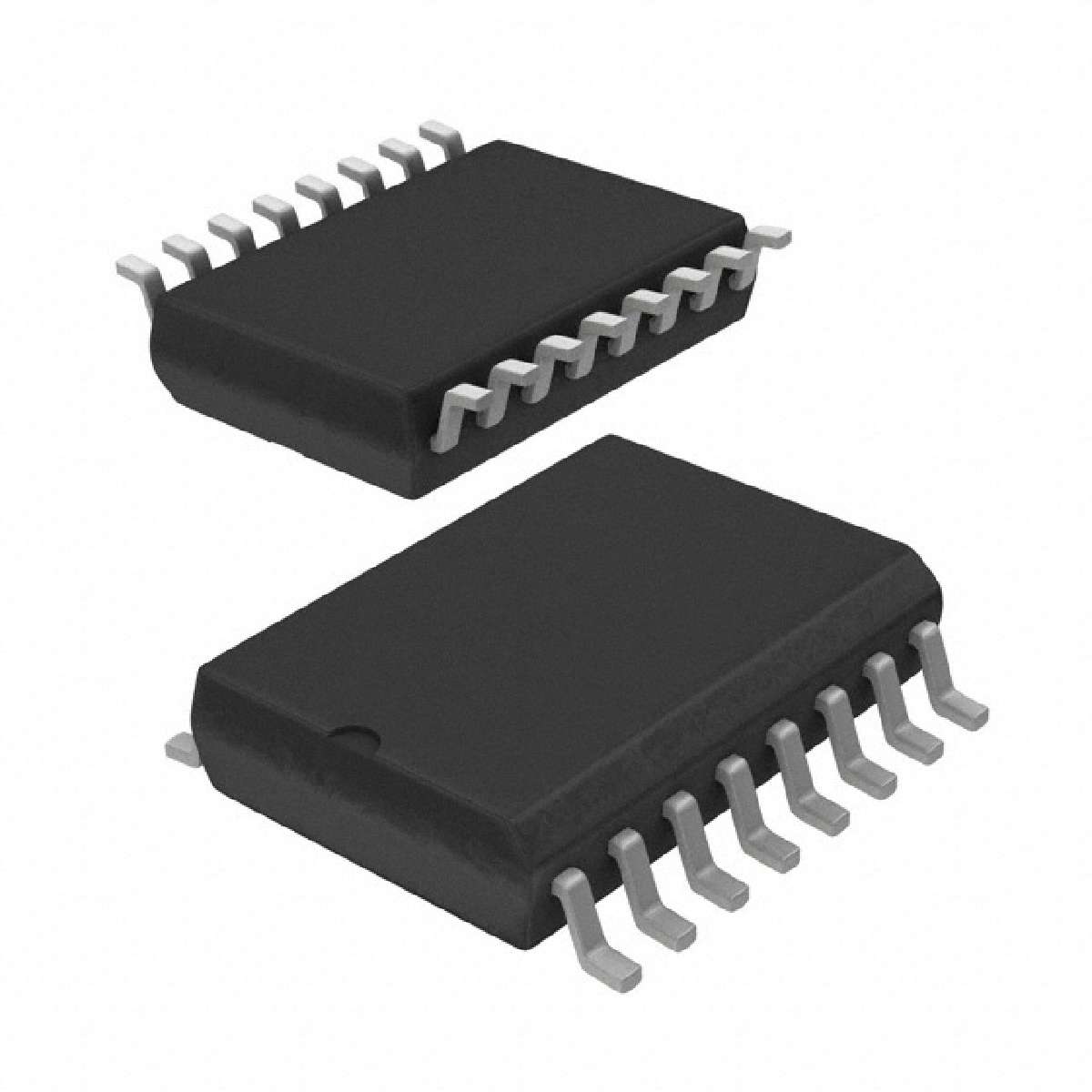

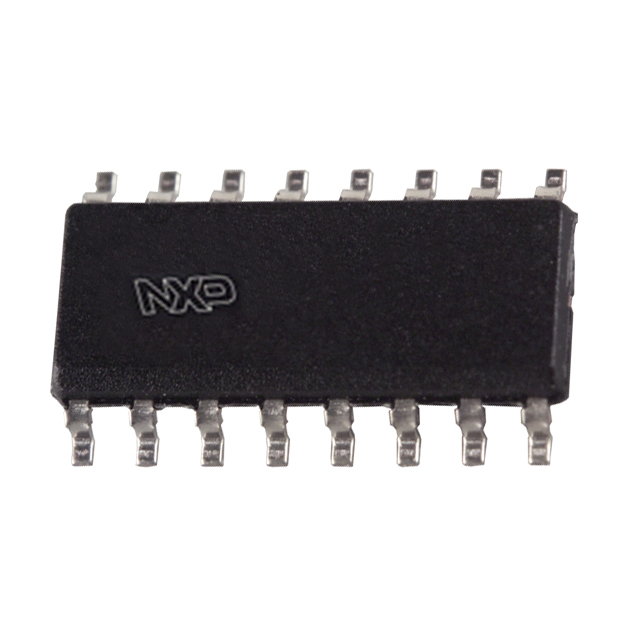

NXP 74HCT367D,652. 逻辑芯片, 六路缓冲器/线驱动器, 三态, SOIC16
The is a hex non-inverting Buffer/Line Driver with 3-state outputs. The 3-state outputs nY are controlled by the output enable inputs 1OE, 2OE. It is high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL LSTTL. A HIGH on nOE causes the outputs to assume a high impedance OFF-state. The 367 is identical to the 368 but has non-inverting outputs.
- .
- Complies with JEDEC standard no. 7
- .
- Output capability - Bus driver
- .
- ICC category - MSI
74HCT367D,652中文资料参数规格
技术参数
电源电压DC 4.50V min
针脚数 16
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
封装参数
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
外形尺寸
高度 1.45 mm
封装 SOIC-16
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Each
制造应用 Automation & Process Control, Signal Processing, Industrial
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
